MEAN WELL LED Driver Constant Voltage LPF 90-305V AC, 130-430V DC/24V DC 16W LPF-16-24

SKU: 514-LPF-16-24
Datasheet: Download PDF
For further information, please refer to the data sheet!

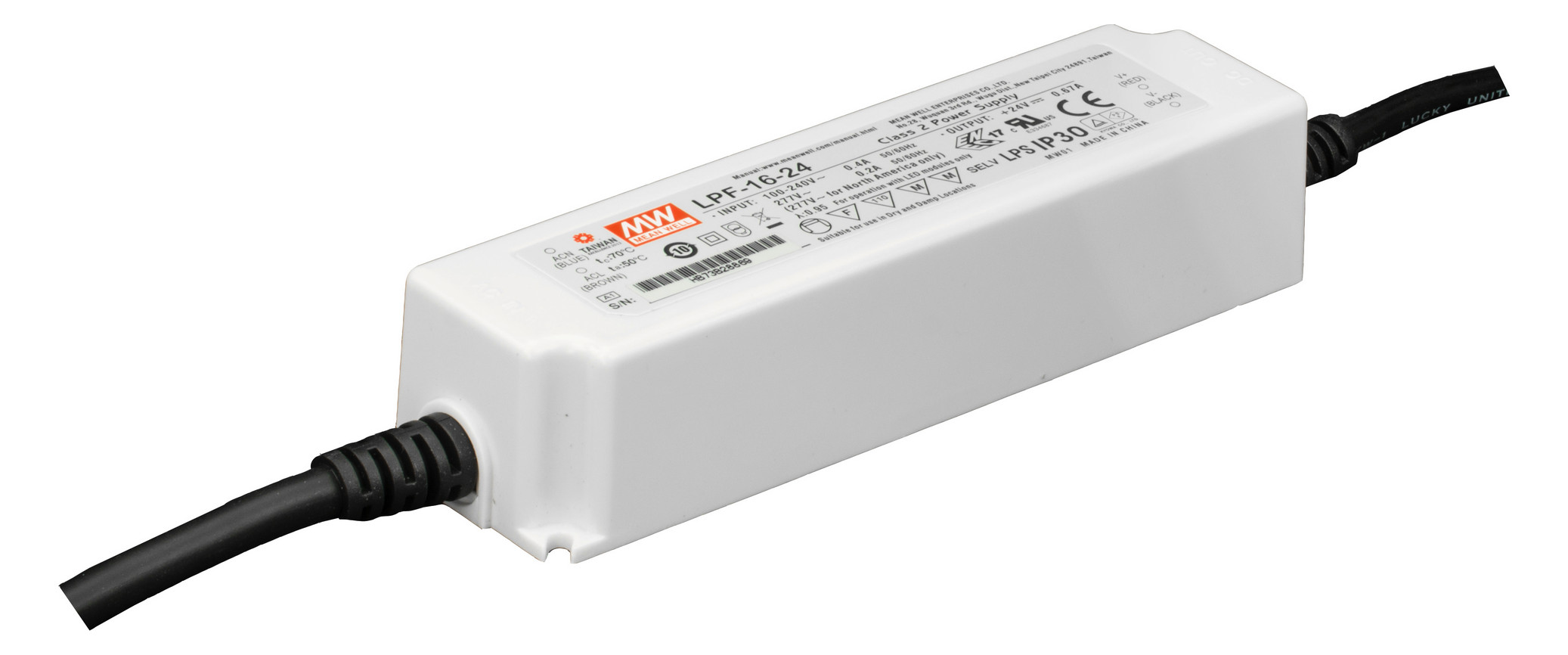

LED power supply, plastic housing, power 16W, input voltage 130-260V AC/DC. Constant voltage output 24V, IP30.
Weight
0,24 kg
Manufacturer

MEAN WELL Enterprises

Weight

0,24 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

1.070 mA

Suitable for DC voltage (primary side)

Yes

Output power

16 W

Protection class (IP)

IP30

Protection class

II

Length

148 mm

Width

40 mm

Height

32 mm

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
LPF-16-24.pdfmeanwell_reach_svhc_declaration-2024_md05-519.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No
