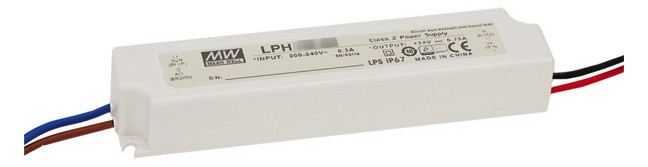

MEAN WELL LED Driver Constant Voltage LPH 180-264VAC 18W 12V/1500mA LPH-18-12

SKU: 514-LPH-18-12

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED power supply, plastic housing, power 18W, input voltage 180-264V AC. Constant voltage output 12V/1, 5A. IP67, overload protection, short circuit protection, overtemperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

0,175 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

12 V

Output current

0 – 1.500 mA

Suitable for DC voltage (primary side)

Output power

18,000 W

Protection class (IP)

IP67

Protection class

Length

140 mm

Width

30,00 mm

Height

22,00 mm

Suitable for outdoor use

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

LPH-18-12.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
