MEAN WELL LED Treiber Konstantspannung LPV 90-264VAC 127-370VDC 102W 12V/8500mA LPV-100-12

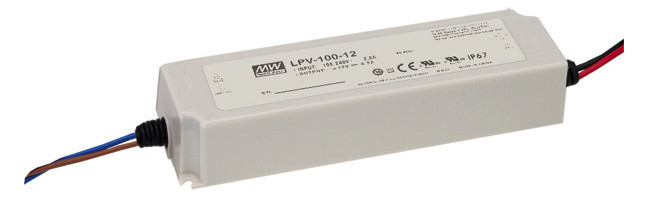

MEAN WELL LED Driver Constant Voltage LPV 90-264VAC 127-370VDC 102W 12V/8500mA LPV-100-12

SKU: 514-LPV-100-12

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED Power Supply, Plastic Housing, Power 102W, Input Voltage 90-264VAC; 127-370VDC. Constant voltage output 12V/8, 5A. IP67, surge protection, overload protection, short circuit protection.

Manufacturer

MEAN WELL Enterprises

Weight

0,63 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

12 V

Output current

0 – 8.500 mA

Suitable for DC voltage (primary side)

Yes

Output power

102,000 W

Protection class (IP)

IP67

Protection class

Length

190 mm

Width

52,00 mm

Height

37,00 mm

Suitable for outdoor use

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes
