MEAN WELL LED Treiber Konstantspannung NPF 90-305V AC 127-431V DC/ 90W 24V, 3750mA NPF-90-24

MEAN WELL LED Driver Constant Voltage NPF 90-305V AC 127-431V DC/ 90W 24V, 3750mA NPF-90-24

SKU: 514-NPF-90-24

Datasheet: Download PDF

For further information, please refer to the data sheet!

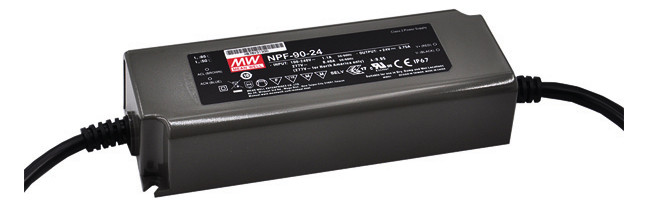

LED power supply, plastic housing, power 90W, input voltage 90-305V AC; 127-431V DC. Constant voltage 24V/3, 75A. IP67. Overload protection, short circuit protection, over-temperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

0,77 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Static

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

3.750 mA

Suitable for DC voltage (primary side)

Yes

Output power

90,000 W

Protection class (IP)

IP67

Protection class

Length

171 mm

Width

63,00 mm

Height

37,50 mm

Suitable for outdoor use

Yes

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

NPF-90-24.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
