MEAN WELL LED Treiber Konstantstrom PCD 180-295VAC 60W 1400mA/25-43V PCD-60-1400B

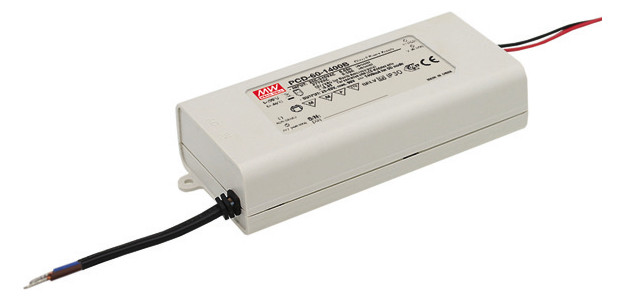

MEAN WELL LED Driver Constant Current PCD 180-295VAC 60W 1400mA/25-43V PCD-60-1400B

SKU: 514-PCD-60-1400B

Datasheet: Download PDF

For further information, please refer to the data sheet!

LED power supply, plastic housing, power 60W, input voltage 180-295VAC. AC dimming, suitable for leading-edge and cut-edge dimmers, constant current 1400mA/25-43V. IP42, short circuit protection, over-temperature protection.

Manufacturer

MEAN WELL Enterprises

Weight

0,35 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output voltage

25 – 43 V

Output current

1.400 mA

Suitable for DC voltage (primary side)

Output power

60,000 W

Protection class (IP)

IP42

Protection class

Length

84 mm

Width

57,00 mm

Height

29,50 mm

Dimming phase cut-off

Yes

Phase control dimming

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

PCD-60-1400B.pdf meanwell_reach_svhc_declaration-2024_md05.pdf
