lineCENTURY 28 - Industrial luminaires grey 54W 110° 4000K CRI80 AA81778

SKU: 66-AA81778
Datasheet: Download PDF
For further information, please refer to the data sheet!

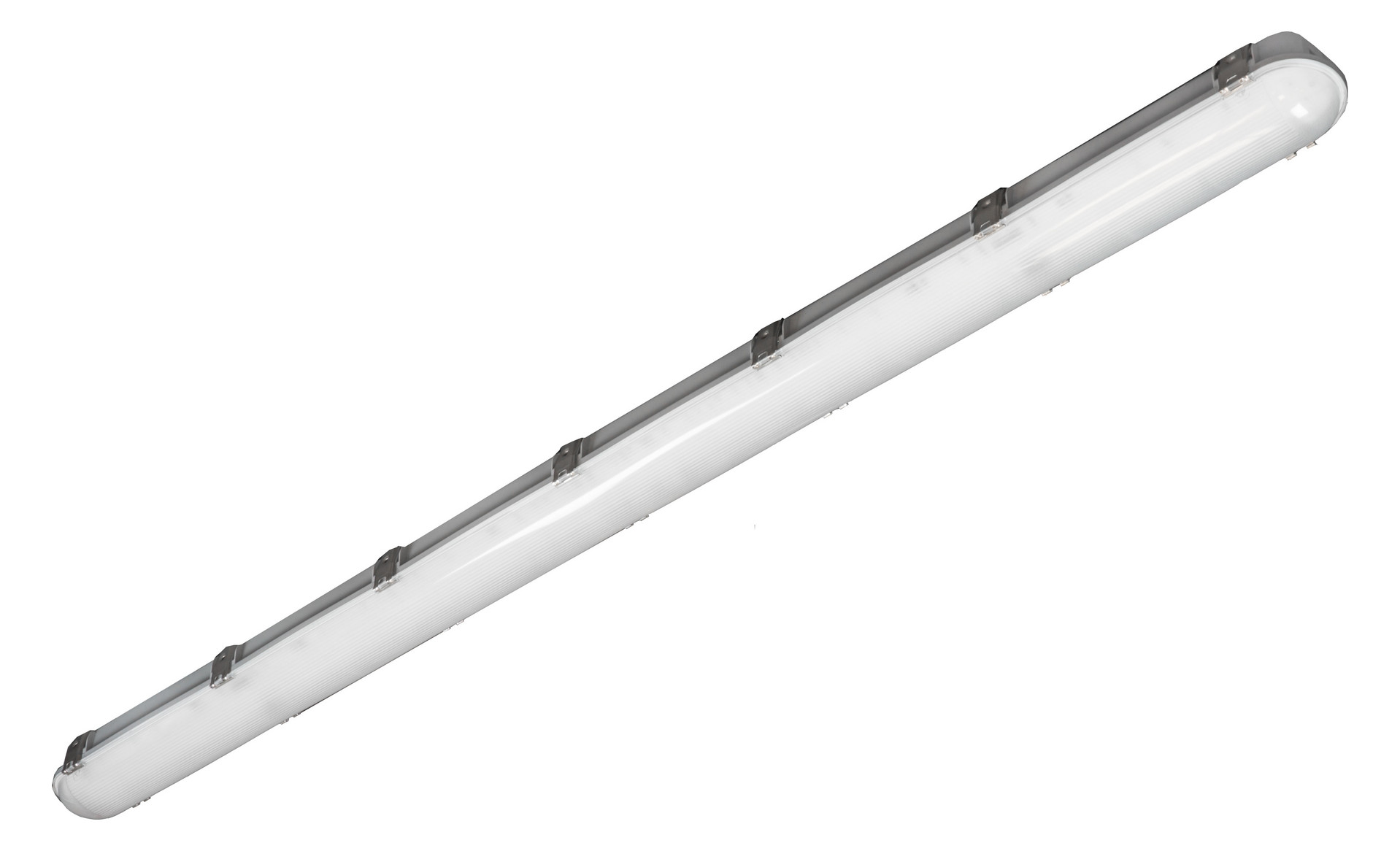

Professional LED moisture-proof bathtub light. Areas of application: warehouses and production plants, industrial areas, parking areas. Impact resistance IK09, protection class IP66. Lockable stainless steel clips. including 5-pin through-wiring. Luminous flux decrease after 80,000h L80/B20. Integrated, non-dimmable control gear. 5-year warranty. Net 7020lm
Weight
5,46 kg
Family

lineCENTURY 28

Weight

5,46 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

No

Dimming DALI-2

No

Luminous flux maintenance with average service life 75,000 h at 25 °C ambient temperature.

80 %

Failure rate with average service life of 75,000 h at 25 °C ambient temperature (tq)

20 %

Max. Number of lights Circuit breaker C16

47

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Housing color

gray

Max. System performance

54 W

Color temperature

4.000 K

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP66

Without dimming function

Yes

Width

100 mm

Height/depth

85 mm

Length

1.560 mm

Version

other

Surface protection housing

untreated

Material of the housing

Plastic

Cover material

Plastic matt/satin finish

Design of the grid

Without

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Light distributor

other

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Color rendering index CRI

80-89

Impact resistance

IK09

Protection class

I

Glow wire test according to IEC 60695-2-11

850 °C – 30 s

Luminaire luminous efficacy

130 lm/W

Light color

white

Light source

LED not replaceable

Power factor

0,95

Type of wiring

Suitable for through-wiring

Number of poles

2

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Suitable for strip light configuration

Yes

Country of origin

Italy (IT)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

Yes

Datenblatt
AA81778.pdfdeclaration_lc28_md52-8.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05-1026.pdfmontageanleitung_lc_28_md14.pdfausschreibungstext_aa81778.txt
Suitable for recessed mounting

No

Suitable for VDU workstations according to EN 12464-1

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No
