SNEP LX P - Pendelleuchten linear weiss 35W 80° 4000K CRI80 LXPUDW80840LE35WIP20WI4T

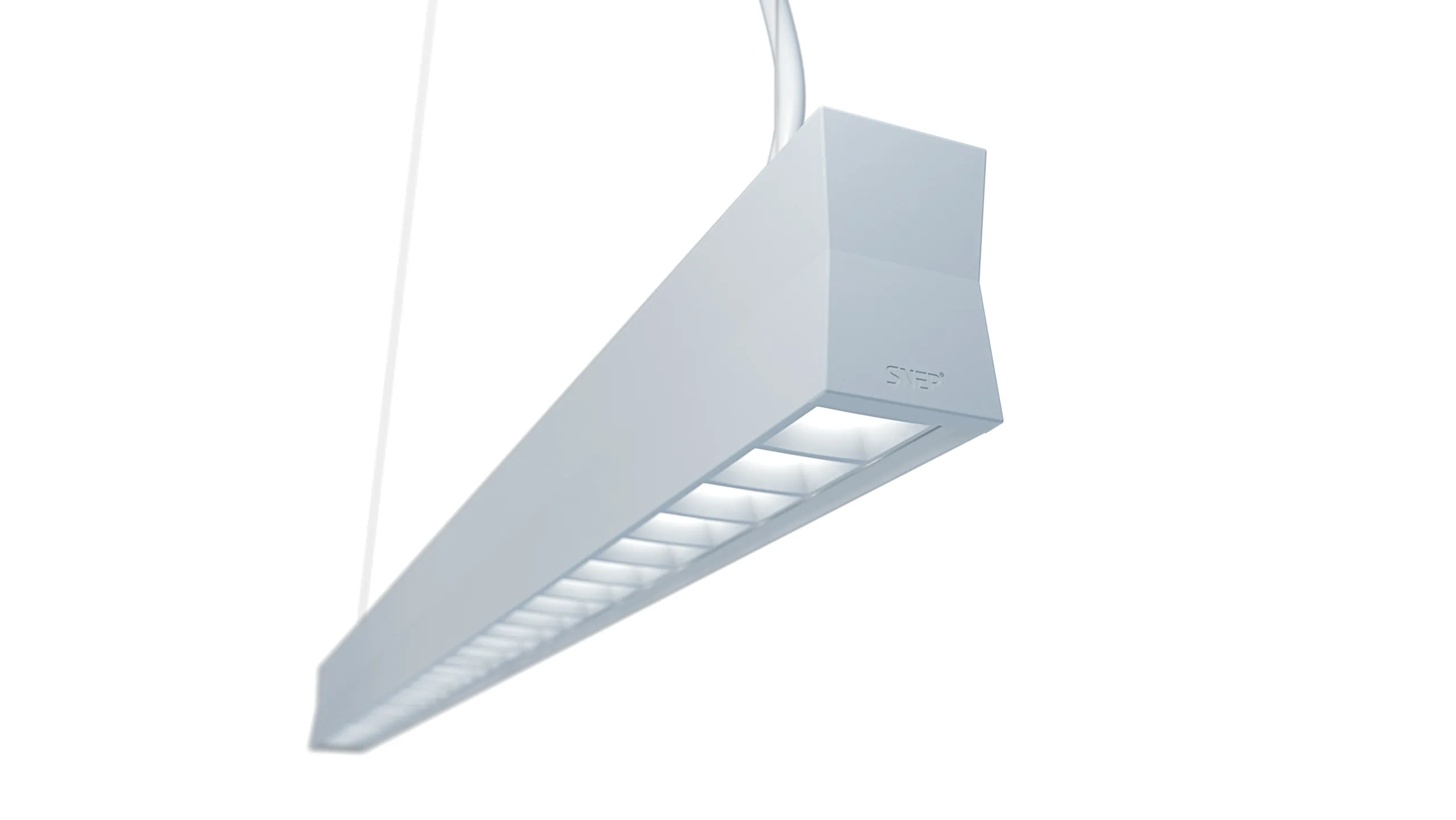

SNEP LX P - Pendant luminaires linear white 35W 80° 4000K CRI80 LXPUDW80840LE35WIP20WI4T

SKU: 717-LXPUDW80840LE35WIP20WI4T

Datasheet: Download PDF

For further information, please refer to the data sheet!

High-quality linear LED pendant luminaire for computer workstations, with precise optics. Housing made of extruded aluminum, powder-coated. Order pendant mounting accessories separately. Direct and indirect light controlled at the same time. UGR < 19. Color tolerance 3 SDCM. Luminous flux decrease after 100,000h L80/B50 at ta 25°C. Integrated control gear. 5-year warranty.

Family

SNEP LX P

Weight

3,5 kg

Product group

Pendant light (EC001743)

Replaceable operating device

Yes

Dimming DALI-2

Constant luminous flux control

Adjustable color temperature

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Light source

LED replaceable

Version

Without

Material of the housing

Aluminum

Housing color

white

Cover material

Without cover

Design of the grid

dull

Voltage type

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Without dimming function

Yes

Light distributor

Diffuser lens/optics/panel

Reflector

dull

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Direct/indirect components separately adjustable

Protection class (IP)

IP20

Protection class

Max. System performance

35,00 W

Light color

white

Luminaire luminous efficacy

156 lm/W

Color temperature

4.000,00 K

Color rendering index CRI

80-89

Power factor

0,95

Width

55,00 mm

Height/depth

85,00 mm

Length

1.160 mm

With suspension

Type of wiring

Conclusion

Number of poles

Connection type

other

Suitable for VDU workstations according to EN 12464-1

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Finland (FI)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt

LXPUDW80840LE35WIP20WI4T.pdf declaration_conformity_purso_md52.pdf purso_oy_reach_declaration_md05.pdf ausschreibungstext_lxpudw80840le35wip20wi4t.txt
