SNEP LINEAR SI - Industrieleuchten linear Aluminium elox. 146W 100° 4000K CRI85 SI1C 840HO2 146W IP44 -2

SNEP LINEAR SI - Industrial luminaires linear aluminium anodised. 146W 100° 4000K CRI85 SI1C 840HO2 146W IP44 -2

SKU: 717-SI1C 840HO2 146W IP44 -2

Datasheet: Download PDF

For further information, please refer to the data sheet!

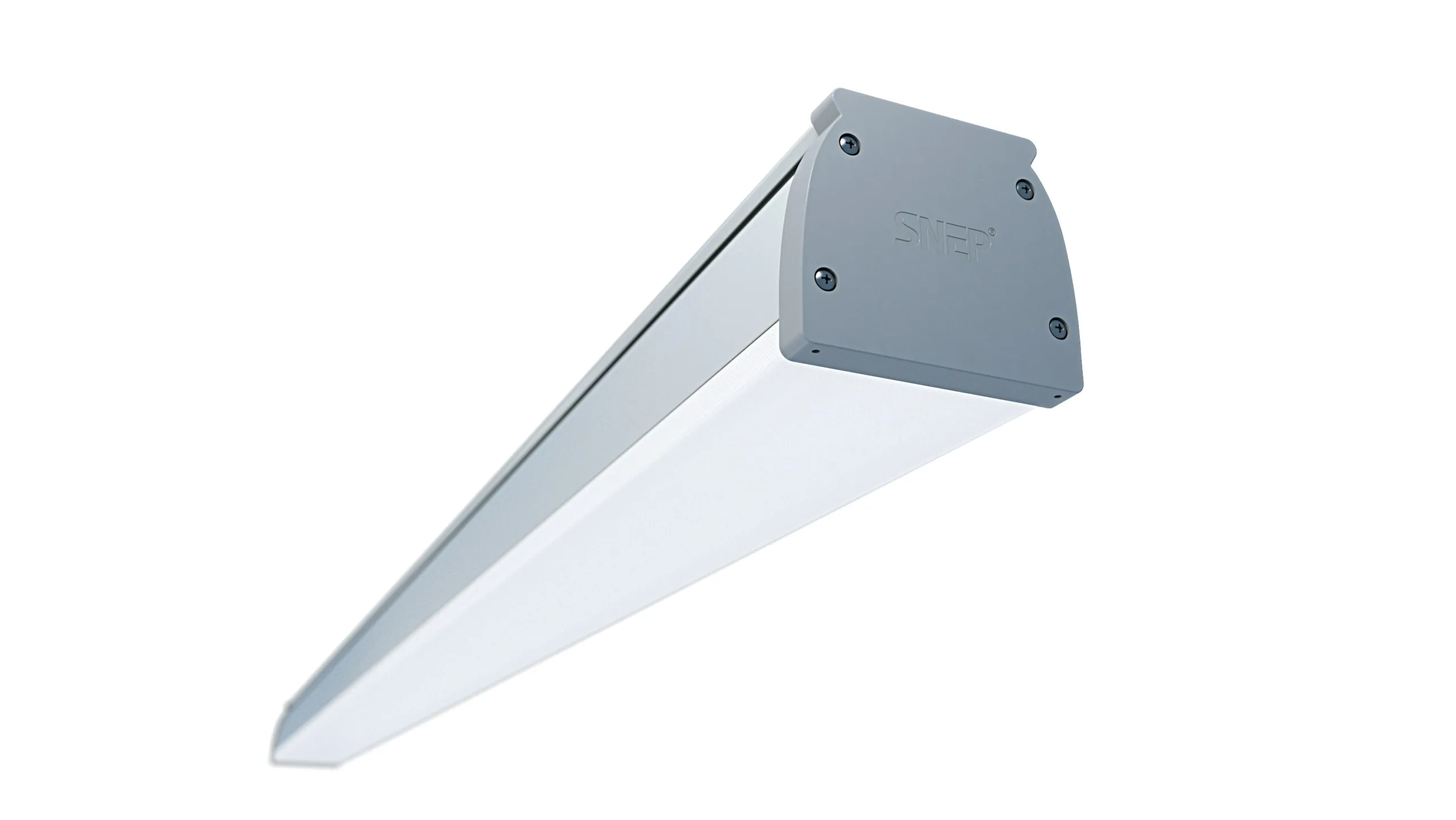

High-quality LED linear luminaire especially for industrial applications and sports halls. Mounting with bracket directly on the ceiling or with rope suspension. Aluminum housing is anodized for optimized effective cooling. End caps made of durable and non-flammable polycarbonate with fire class V-0. High-performance optics with reflector and clear cover. Ball-proof in sports halls according to DIN 18032-3. Suitable for high ceilings with a height of 6-12m. Not suitable for condensation environments. 2m PVC cable 3x1.5mm² with open cable ends. Suitable for ambient temperature -25°C to +40°C. Luminous flux decrease after 100,000h L80/B50 at ta 25°C. Integrated, non-dimmable control gear. Net 21600lm

Family

SNEP LINEAR SI

Weight

3,8 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Constant luminous flux control

Adjustable color temperature

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Housing color

Aluminum

Max. System performance

146,00 W

Color temperature

4.000,00 K

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP44

Without dimming function

Yes

Width

85,00 mm

Height/depth

75,00 mm

Length

1.550 mm

Surface protection housing

other

Material of the housing

Aluminum

Cover material

Transparent plastic

Design of the grid

Without

Voltage type

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Color rendering index CRI

80-89

Impact resistance

IK08

Protection class

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

148 lm/W

Light color

white

Light source

LED replaceable

Power factor

0,95

Type of wiring

Conclusion

Number of poles

Connection type

solder

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Finland (FI)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes

Datenblatt

SI1C840HO2146WIP44-2.pdf declaration_conformity_purso_md52.pdf purso_oy_reach_declaration_md05.pdf ausschreibungstext_si1c_840ho2_146w_ip44_-2.txt
