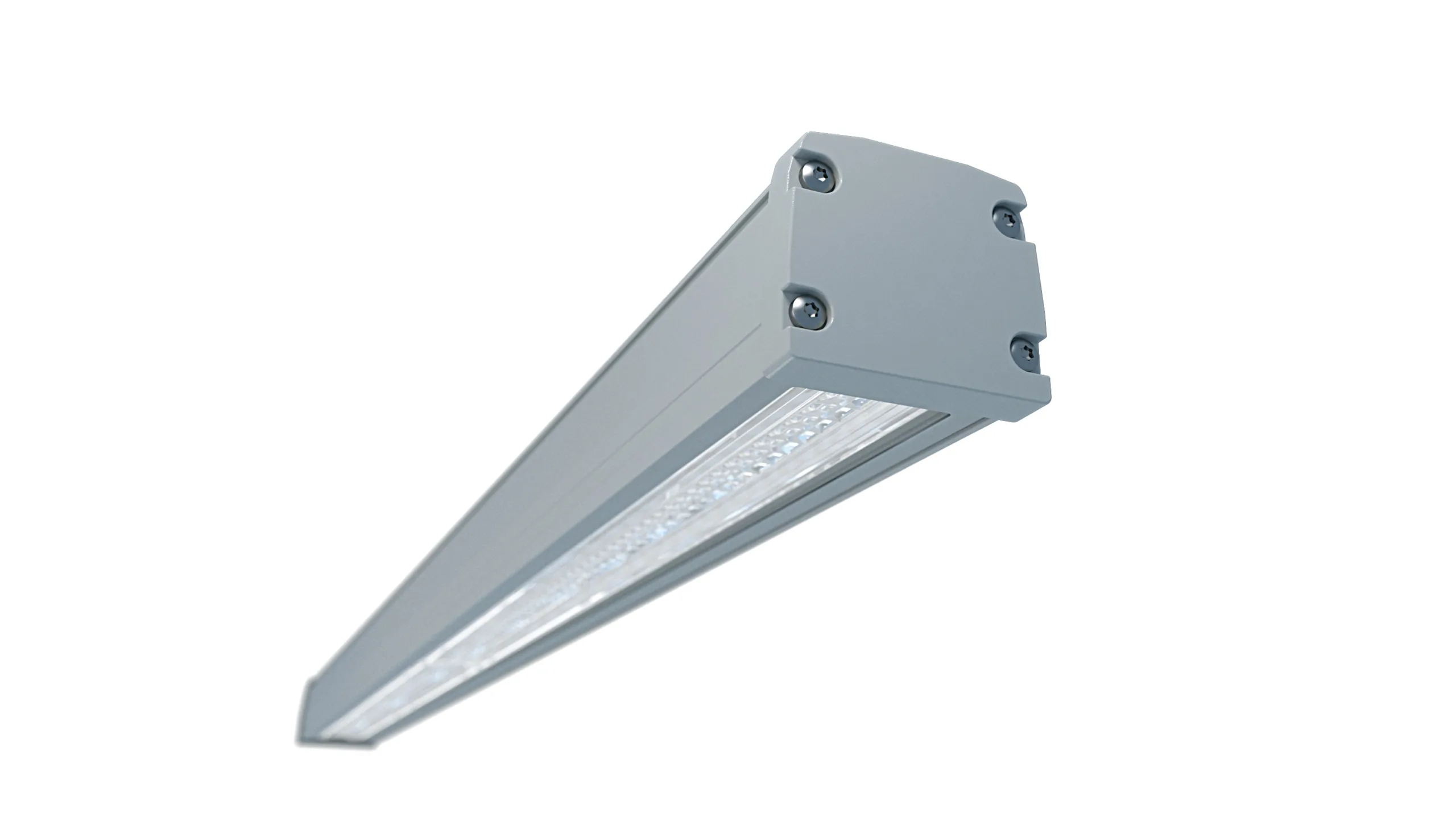

SNEP MODE X - Industrial luminaires linear RAL 7016 42W 90° 4000K CRI85 X06W90 840HE- 84042WIP67-4R

SKU: 717-X06W90 840HE- 84042WIP67-4R

Datasheet: Download PDF

For further information, please refer to the data sheet!

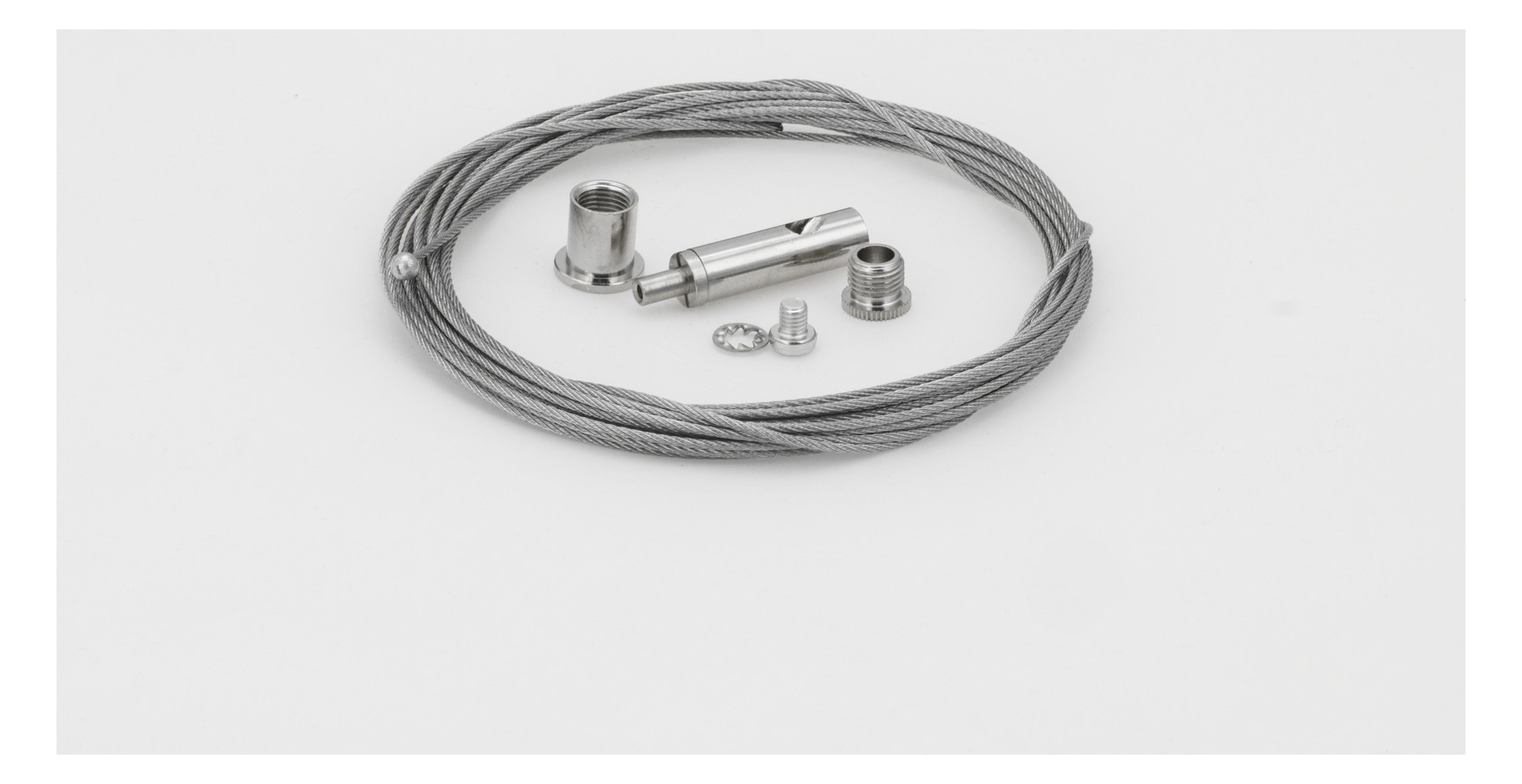

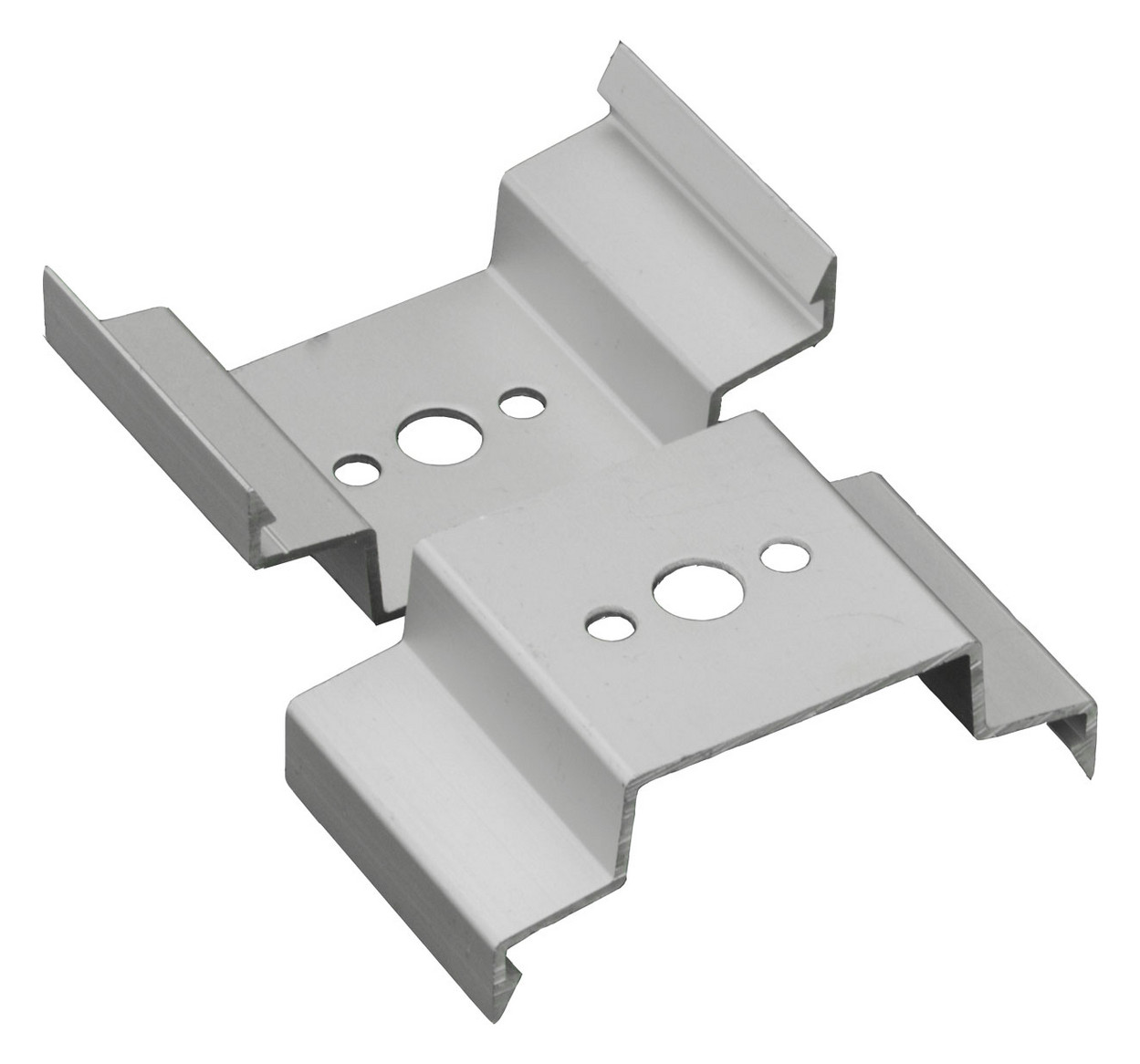

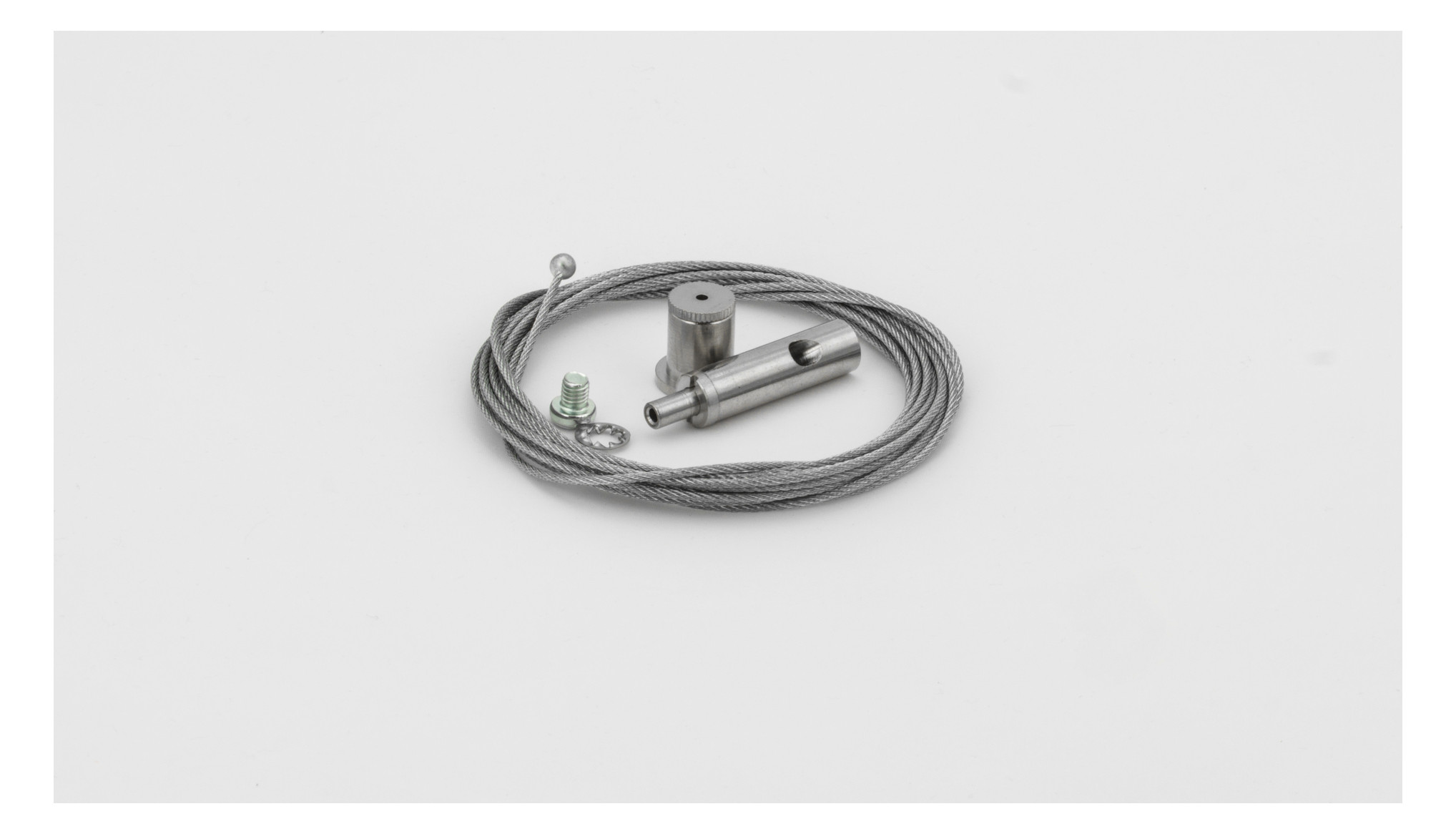

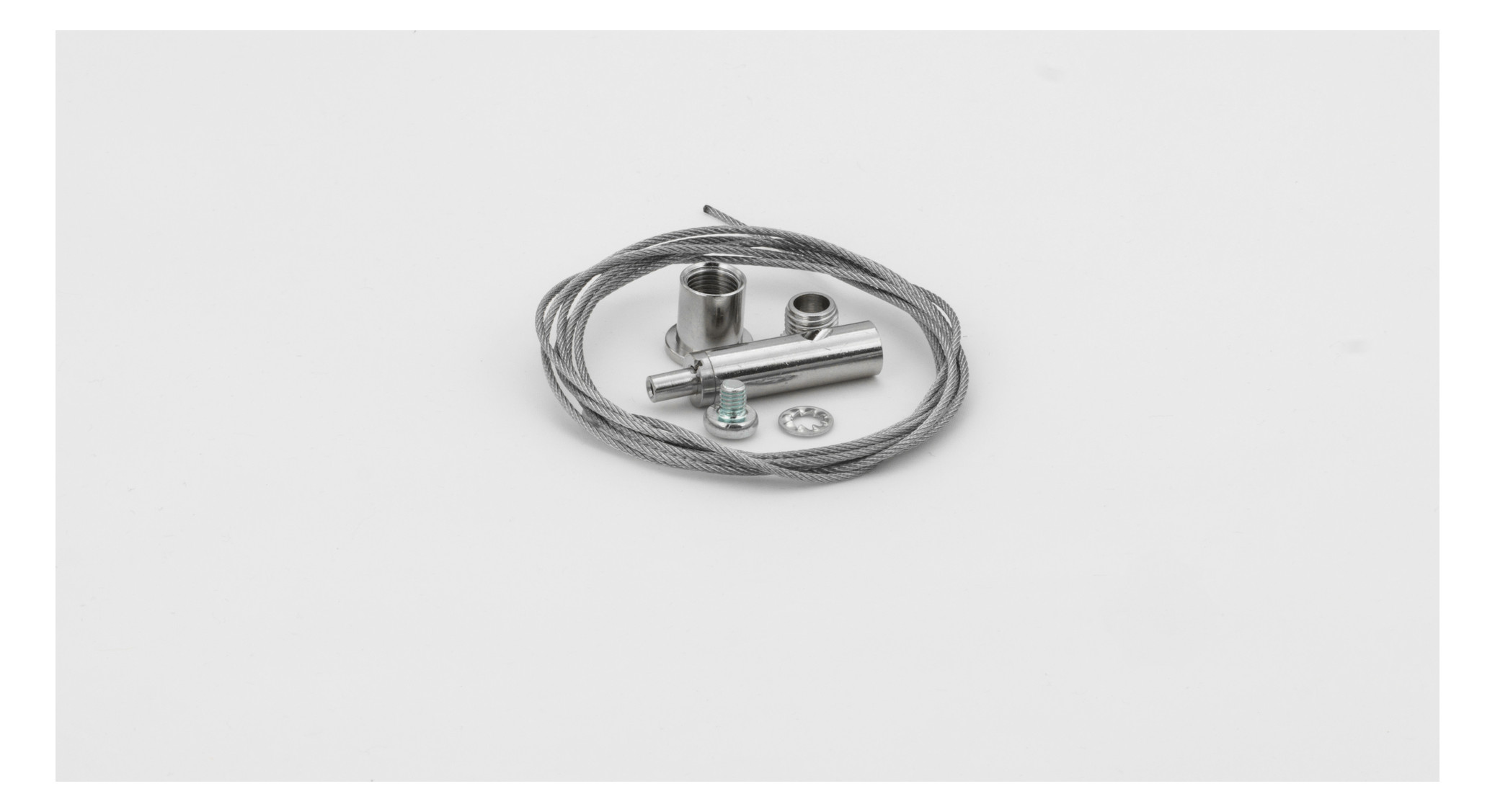

Optimally thought-out LED surface-mounted/pendant luminaire for demanding industrial lighting in heavy industry, maintenance halls, warehouses, car washes, industries with oil or chemical evaporation, terminal buildings and tunnels. Mounting directly on the ceiling or on rope suspension. Order pendant mounting accessories separately. Housing made of aluminum profile, powder-coated. End caps made of die-cast aluminum, powder-coated. Cable grommet made of brass or stainless steel. 2pcs VT22003 bracket required for ceiling mounting. Gasket made of high-quality silicone. PMMA optics made of injection molding. Corrosion class C5. Suitable for ambient temperature -25°C to +50°C. Luminous flux decrease after 100,000h L80/B50 at ta 25°C. 5 years warranty. Integrated, non-dimmable control gear. Net 6600lm

Family

SNEP MODE X

Weight

6,5 kg

Product group

Ceiling/wall light (EC002892)

Replaceable operating device

Yes

Dimming DALI-2

Constant luminous flux control

Adjustable color temperature

Adjustable luminous flux

Adjustable beam angle

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Max. System performance

42,00 W

Color temperature

4.000,00 K

Beam angle

Extremely wide beam >80°

Protection class (IP)

IP67

Without dimming function

Yes

Width

79,00 mm

Height/depth

69,00 mm

Length

1.770 mm

Surface protection housing

powder-coated

Material of the housing

Aluminum

Cover material

Transparent glass

Design of the grid

Without

Voltage type

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Color rendering index CRI

80-89

Impact resistance

IK09

Protection class

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

157 lm/W

Light color

white

Light source

LED replaceable

Power factor

0,95

Type of wiring

Conclusion

Number of poles

Connection type

solder

Photobiological safety according to EN 62471

RG1

Suitable for wall mounting

Yes

Suitable for pendant suspension

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

With illuminant

Yes

With control gear

Yes

Country of origin

Finland (FI)

Statistische Warennummer

Lüster und andere elektrische Decken- und Wandleuchten, mit LED-Lichtquelle, aus anderen Stoffen als Kunststoff, keramischen Stoffen oder Glas (94051190)

REACH Indicator

Yes
