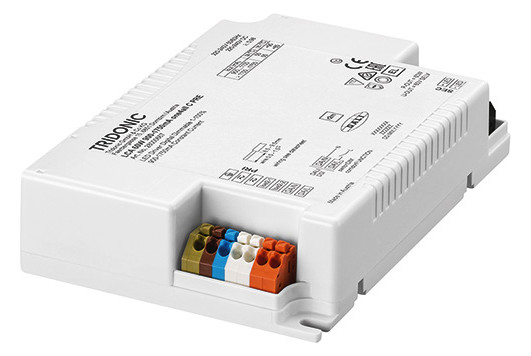

TRIDONIC LED Driver Constant Current LCA 60W 900-1750mA one4all C PRE 28000667

SKU: 73-28000667
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 900 – 1,750 mA with ready2mains Programmer, I-SELECT 2 plugs or DALI, max. output power 60 W, up to 90 % efficiency, power consumption in stand-by < 0.2 W, nominal service life up to 100,000 h, 5 years warranty, housing: Polycarbonate, white, IP20 degree of protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configuration and dimming via mains), terminals: 45° plug-in terminals, adjustable output current in 1 mA steps (DALI, ready2mains, I-SELECT 2), Constant Light Output Function (CLO), Power-up Fading at AC, Configuration via ready2mains, Service Monitor logs certain events, protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via DALI, ready2mains and I-SELECT 2, Service life up to 100,000 h and 5 years warranty, For linear and area lighting in office applications
Manufacturer

Tridonic Germany GmbH

Weight

0,207 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

900 – 1.750 mA

Suitable for DC voltage (primary side)

Yes

Output power

48,600 – 60,000 W

Protection class (IP)

IP20

Length

125 mm

Width

85,00 mm

Height

28,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28000667.pdf
