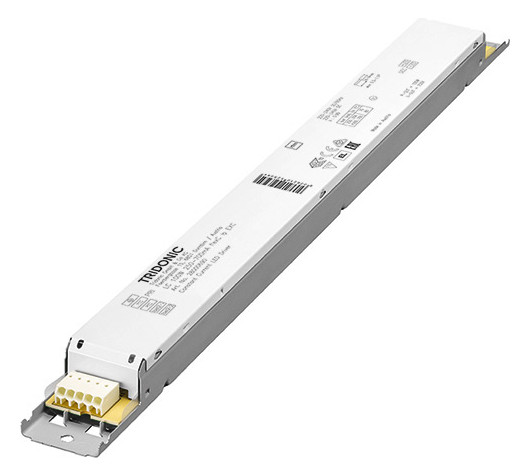

TRIDONIC LED Driver Constant Current LC 100W 250-700mA flexC lp EXC 28000690

SKU: 73-28000690
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, For luminaires of protection class I and protection class II, Output current adjustable between 250 – 700 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 100 W, Up to 95 % efficiency, Nominal service life up to 100,000 h, 5 years warranty, "Low profile" metal housing with white top, IP20 protection, ready2mains (configuration via mains), Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to high efficiency, Flexible configuration via ready2mains and I-SELECT 2, Service life up to 100,000 h and 5-year warranty, For linear and area lighting in office applications
Weight
0,205 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,205 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

250 – 700 mA

Suitable for DC voltage (primary side)

Yes

Output power

55 – 100 W

Protection class (IP)

IP20

Length

280 mm

Width

30 mm

Height

21 mm

Country of origin

Austria (AT)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
28000690.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
