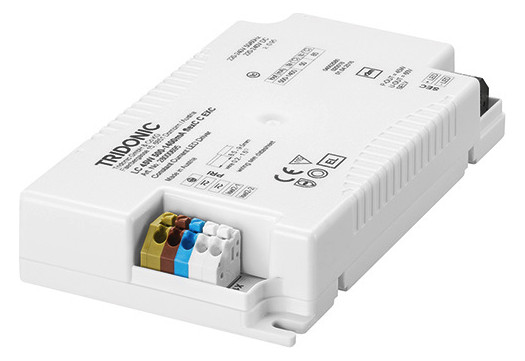

TRIDONIC LED Driver Constant Current LC 45W 500-1400mA flexC C EXC 28000695

SKU: 73-28000695
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, Output current adjustable between 500 – 1,400 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 45 W, Up to 88 % efficiency, Nominal service life up to 100,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, ready2mains (configuration via mains), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Protection functions (overtemperature, short circuit, overload, no-load, Input voltage range), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to high efficiency, Flexible configuration via ready2mains and I-SELECT 2, For downlights, spotlights and decorative applications
Weight
0,144 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,144 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

500 – 1.400 mA

Suitable for DC voltage (primary side)

Yes

Output power

25 – 45 W

Protection class (IP)

IP20

Length

120 mm

Width

70 mm

Height

22 mm

Country of origin

Serbia (RS)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
28000695.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
