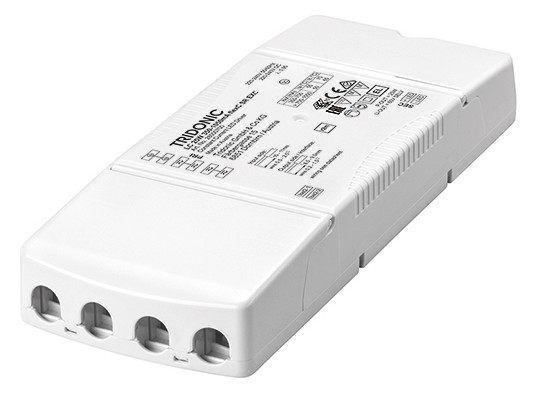

TRIDONIC LED Driver Constant Current 220-240VAC 17.5-25W 350-1050mA 28000700

SKU: 73-28000700
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, power 17, 5-25W, output current 300 – 1050 mA with ready2mains Programmer or I-SELECT 2 plugs, input voltage AC/DC, 5 years warranty, P20, output current in 1 mA steps (ready2mains, I-SELECT 2), protection in case of overtemperature, short circuit, overload, open circuit, input voltage
Manufacturer

Tridonic Germany GmbH

Weight

0,186 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

20 – 50 V

Output current

350 – 1.050 mA

Suitable for DC voltage (primary side)

Yes

Output power

17,500 – 25,000 W

Protection class (IP)

IP20

Protection class

II

Length

200 mm

Width

70,00 mm

Height

31,00 mm

Country of origin

Serbia (RS)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes
