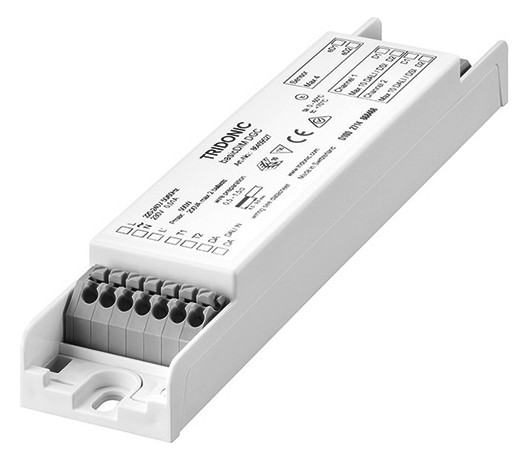

TRIDONIC control module basicDIM DGC 28000920

SKU: 73-28000920

Datasheet: Download PDF

For further information, please refer to the data sheet!

Compact dimensions for luminaire installation, For up to 20 DSI or DALI control gear (max. 10 per output channel), DALI IN input, 2 DALI/DSI output channels with adjustable negative offset from channel 2 to channel 1, 1 relay output, sensor input for connecting up to 4 basicDIM DGC sensors 5DPI 14, 2 button inputs for on/off and dimming, Individual adjustment of the parameters via basicDIM DGC Programmer or the masterCONFIGURATOR software, 5-year warranty

Manufacturer

Tridonic Germany GmbH

Weight

0,06 kg

Product group

Light control system component (EC000533)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

Control unit

Width

30,00 mm

Height

21,00 mm

Depth

159,00 mm

With mounting plate

Supports protocol for ZigBee

Country of origin

Slovakia (SK)

Statistische Warennummer

Geräte zum Empfangen, Konvertieren und Senden oder Regenerieren v. Tönen, Bildern oder anderen Daten, einschl. Geräte für die Vermittlung (switching) und Wegewahl (routing) (85176200)

REACH Indicator

Yes

Datenblatt

28000920.pdf
