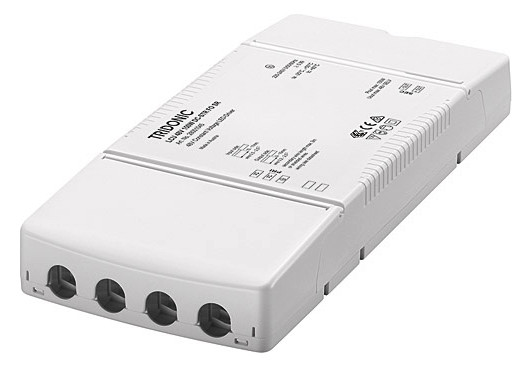

TRIDONIC LED Treiber Konstantspannung LCU 48V 150W DC-STR FO SR 28001045

TRIDONIC LED Driver Constant Voltage LCU 48V 0W DC-STR FO SR 28001045

SKU: 73-28001045

Datasheet: Download PDF

For further information, please refer to the data sheet!

Independent fixed-output DC string constant voltage LED driver, Compatible with other DC string components, Max output power 150 W, Up to 93% efficiency, Nominal life up to 50,000 h, For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, 5 years warranty, Housing: Polycarbonate, white, IP20 rating, DC string compatible, Intelligent Temperature Guard (thermal protection device), Short circuit protection, Overload protection

Manufacturer

Tridonic Germany GmbH

Weight

0,365 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

Length

235 mm

Width

100,00 mm

Height

31,00 mm

Country of origin

Austria (AT)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

28001045.pdf
