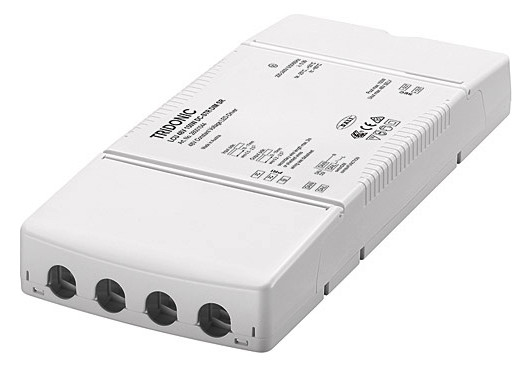

TRIDONIC LED Driver Constant Voltage LCU 48V W DC-STR DIM SR 28001233

SKU: 73-28001233
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent dimmable DC string constant voltage LED driver, Compatible with other DC string components, Integrated DALI to DC powerline communication (PLC), one4all interface (corridorFUNCTION, switchDIM, DALI, DSI), Max output power 75 W, Up to 91% efficiency, Nominal service life up to 50,000 h, For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, DC String Compatible, Intelligent Temperature Guard, Short Circuit Protection, Overload Protection
Manufacturer

Tridonic Germany GmbH

Weight

0,349 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Protection class

II

Length

235 mm

Width

100,00 mm

Height

31,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28001233.pdf
