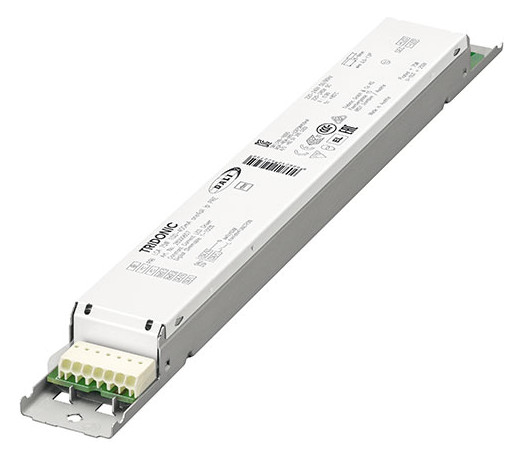

TRIDONIC LED Driver Constant Current LCA W 250-550mA one4all lp PRE 28001250

SKU: 73-28001250
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable constant current LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 250 – 550 mA, max. output power 75 W, up to 92 % efficiency, power consumption in stand-by < 0, 15 W, nominal service life up to 100,000 h, 5-year warranty, "low profile" metal housing with white upper part, protection class IP20, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configuration and dimming via mains), terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (DALI, ready2mains, I-SELECT 2), Constant Light Output Function (CLO), Power-up Fading at AC, Configuration via ready2mains, Service Monitor logs certain events, protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced surge current gain), Suitable for Emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via DALI, ready2mains and I-SELECT 2, Service life up to 100,000 h and 5 years warranty, For linear and area lighting in office applications
Manufacturer

Tridonic Germany GmbH

Weight

0,21 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

250 – 550 mA

Suitable for DC voltage (primary side)

Yes

Output power

37,500 – 75,000 W

Protection class (IP)

IP20

Length

280 mm

Width

30,00 mm

Height

21,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28001250.pdf
