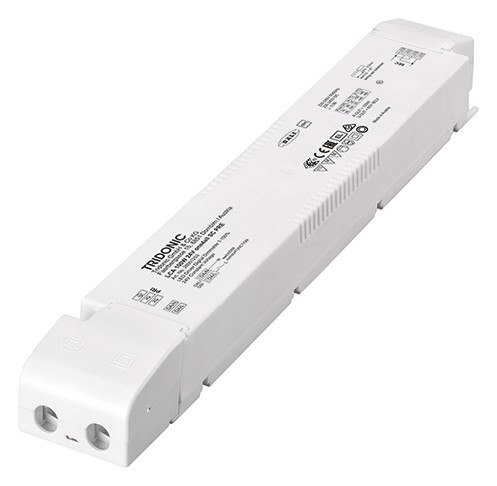

TRIDONIC LED Driver Constant Voltage 220-240VAC 24VDC 100W Dimmable 28001253

SKU: 73-28001253
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable 24 V constant voltage LED driver for flexible constant voltage LED strips, input voltage AC/DC, power 100W, dimming range 1 – 100 %, 5 years warranty, 1 output channel (+/–), one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains, SELV
Manufacturer

Tridonic Germany GmbH

Weight

0,254 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output voltage

24 V

Output current

417 – 4.167 mA

Suitable for DC voltage (primary side)

Yes

Output power

10,000 – 100,000 W

Protection class (IP)

IP20

Protection class

III

Length

295 mm

Width

43,00 mm

Height

30,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming LineSwitch

Yes

Programmable dimming

Yes

Dimming Touch and Dim

Yes

Dimming with push-button

Yes

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28001253.pdf
