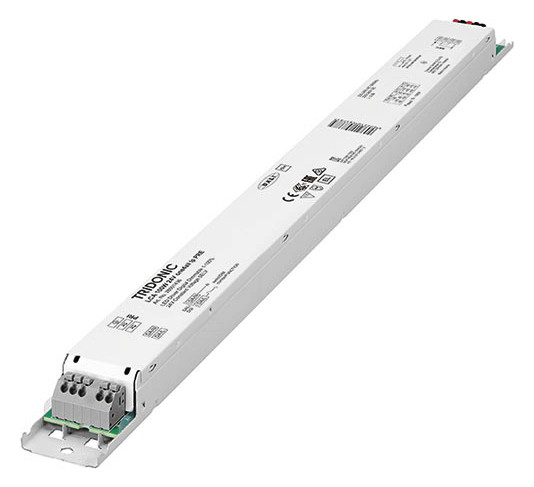

TRIDONIC LED Driver Constant Voltage LCA 100W 24V one4all lp PRE 28001436

SKU: 73-28001436
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable 24 V constant voltage LED driver for flexible constant voltage LED strips, one4all interface and ready2mains enable various dimming options, dimming range from 1 – 100 %, no external dimmer necessary, suitable for emergency lighting systems according to EN 50172, nominal service life up to 50,000 h, 5 years warranty, cove lighting, façade accent lighting, indirect ceiling lighting, 24 V, 100 W, small cross-section, plug-in terminals for easy wiring, Output terminals (+/–) doubled for more flexibility in use, one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION), ready2mains (configuration and dimming via mains), terminals: 45° plug-in terminals, Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m, Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m, In conjunction with Flex-Zubehör Wire to PCB connectors, The proper function of third-party modules at low dimming levels cannot be guaranteed and is not recommended
Manufacturer

Tridonic Germany GmbH

Weight

0,336 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output current

417 – 4.167 mA

Suitable for DC voltage (primary side)

Yes

Output power

10,000 – 100,000 W

Protection class (IP)

IP20

Length

425 mm

Width

30,00 mm

Height

21,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28001436.pdf
