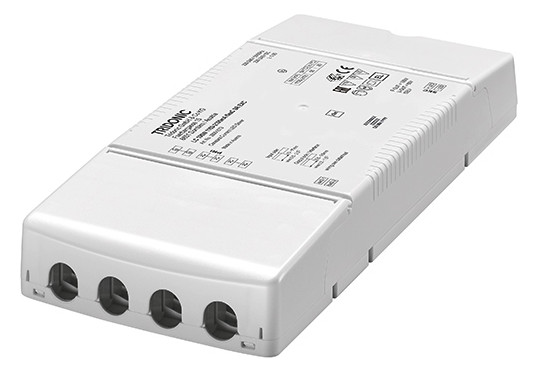

TRIDONIC LED Driver Constant Current 220-240VAC 59.4-100W 1100-2100mA 28001573

SKU: 73-28001573
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, power 59, 4-100W, output current 1100 – 2100 mA with ready2mains Programmer or I-SELECT 2 plugs, input voltage AC/DC, 5 year warranty, P20, output current in 1 mA steps (ready2mains, I-SELECT 2), protection in case of overtemperature, short circuit, overload, open circuit, input voltage
Weight
0,351 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,351 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

20 – 54 V

Output current

1.100 – 2.100 mA

Suitable for DC voltage (primary side)

Yes

Output power

59,4 – 100 W

Protection class (IP)

IP20

Protection class

II

Length

235 mm

Width

100 mm

Height

31 mm

Country of origin

Serbia (RS)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
28001573.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
