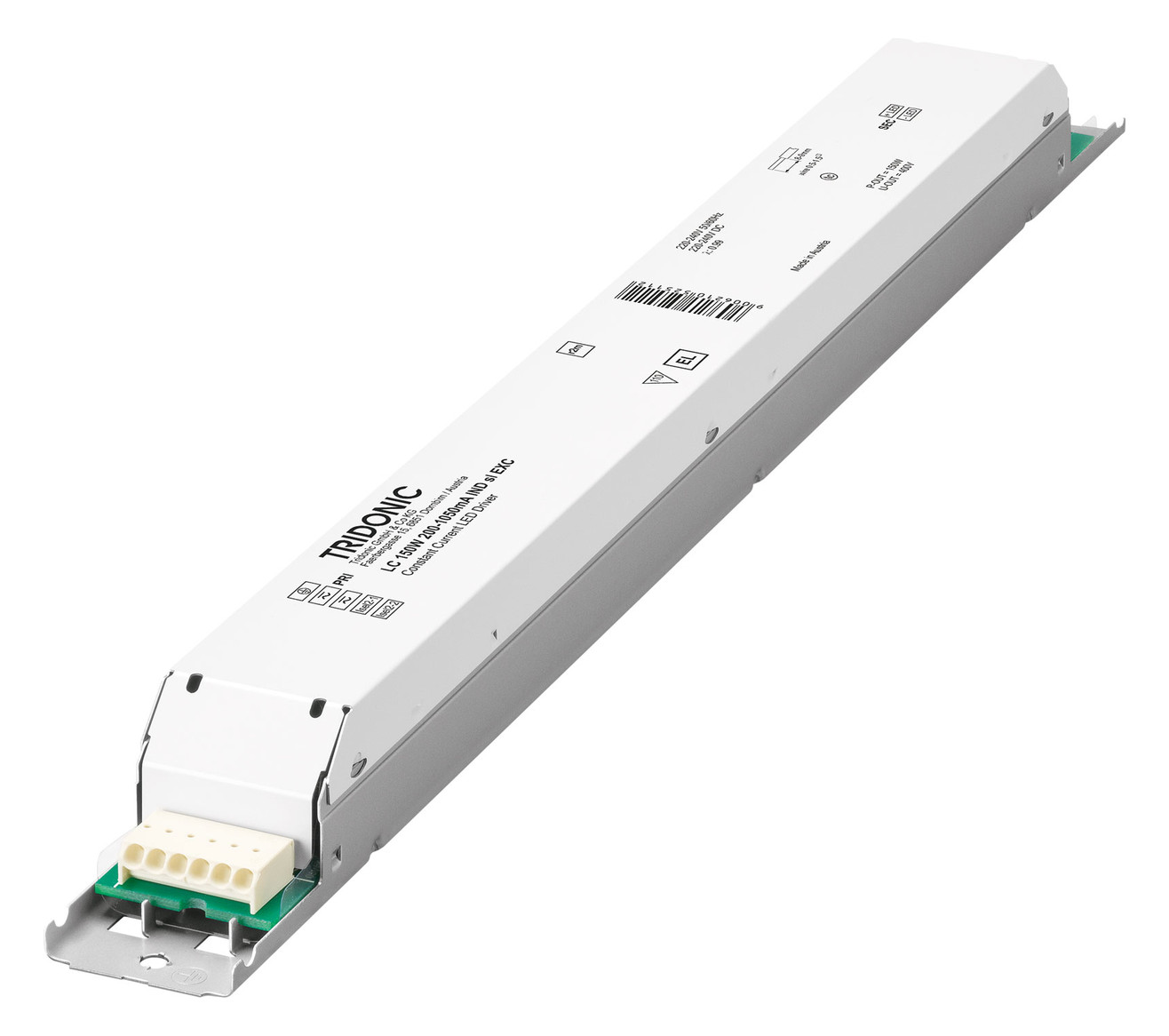

TRIDONIC LED Driver Constant Current LC 150W 200-1050mA EXC 28001698

SKU: 73-28001698
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, particularly suitable for industrial applications in temperate environments such as semiconductor factories or logistics warehouses, The LED driver is designed for increased service life under the mentioned reference conditions and has a failure probability of less than 10%, output current adjustable between 200 – 1,050 mA, Max. output power 150 W, Voltage peak suitable (burst/surge) up to 4 kV, temperature range of -25 .. . +60 °C, Nominal lifetime up to 100,000 h, 5-year warranty, White "slim" metal housing, IP20 protection, ready2mains (mains configure), Adjustable output current in 1 mA increments (ready2mains, I-SELECT 2), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Suitable for emergency lighting systems according to EN 50172, Power-up Fading at AC, Intelligent Temperature Guard (thermal protection device), Intelligent Voltage Guard (Overvoltage and undervoltage monitoring)
Weight
0,331 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,331 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

200 – 1.050 mA

Suitable for DC voltage (primary side)

Yes

Output power

60 – 150 W

Protection class (IP)

IP20

Length

360 mm

Width

30 mm

Height

28 mm

Country of origin

Austria (AT)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
28001698.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
