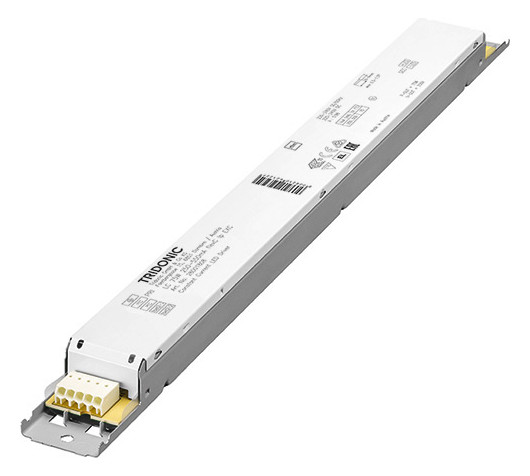

TRIDONIC LED Driver Constant Current LC 75W 250-550mA flexC lp EXC 28001808

SKU: 73-28001808
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, For luminaires of protection class I and protection class II, Output current adjustable between 250 – 550 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 75 W, Up to 94 % efficiency, Nominal service life up to 100,000 h, 5 years warranty, "Low profile" metal housing with white upper part, IP20 degree of protection, ready2mains (configuration via mains), Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to high efficiency, Flexible configuration via ready2mains and I-SELECT 2, Service life up to 100,000 h and 5-year warranty, For linear and area lighting in office applications
Manufacturer

Tridonic Germany GmbH

Weight

0,206 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

250 – 550 mA

Suitable for DC voltage (primary side)

Yes

Output power

55,000 – 75,000 W

Protection class (IP)

IP20

Length

280 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

Austria (AT)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
28001808.pdf
