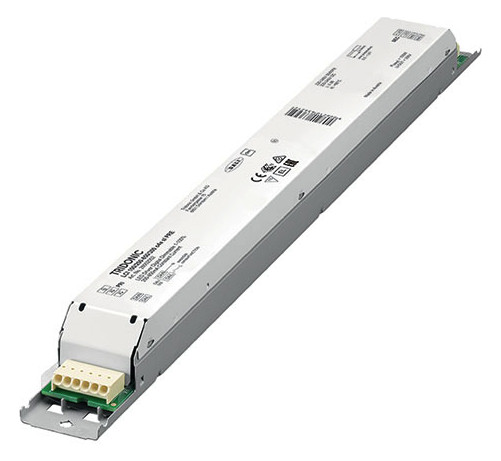

TRIDONIC LED Driver Constant Current LCI 100/200-850/300 o4a sl PRE 28002052

SKU: 73-28002052
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, particularly suitable for industrial applications in harsh environments with elevated ambient temperatures, such as cold warehouses or factories, dimming range from 1 – 100 %, output current adjustable between 200 – 850 mA, max. output power 100 W, suitable for voltage peaks (burst/surge) up to 4 kV, extended temperature range from -40 ... +70 °C, nominal service life up to 100,000 h (at ta 60 °C), 8-year warranty, White "slim" metal housing, IP20 protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2), ready2mains (configuration and dimming via mains), terminals: 0° plug-in terminals, adjustable output current in 1 mA steps (I-SELECT resistor or eD), Constant Light Output Function (CLO), Power-up Fading at AC, Intelligent Temperature Guard (thermal protection device), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses, Flexible configuration via DALI, ready2mains and I-SELECT 2, Improved vibration properties, Increased safety due to robust design and extended test procedures under extreme test conditions, High reliability due to selection Exclusive components, for linear and area lighting in industrial applications
Manufacturer

Tridonic Germany GmbH

Weight

0,324 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

200 – 850 mA

Suitable for DC voltage (primary side)

Yes

Output power

60,000 – 100,000 W

Protection class (IP)

IP20

Length

360 mm

Width

30,00 mm

Height

28,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

Serbia (RS)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28002052.pdf
