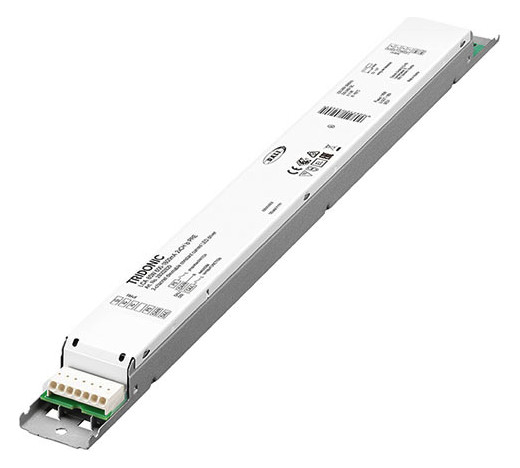

TRIDONIC LED Driver Constant Current LCA 85W 600-1800mA 2xCH lp PRE 28002829

SKU: 73-28002829
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable two-channel DALI DT6 constant current LED driver for luminaire installation, dimming range from 1 – 100 %, suitable for luminaires of protection class I and protection class II (for details see data sheet chapter 3.4), output current adjustable between 600 – 1,800 mA for each channel with I-SELECT 2 plugs or DALI, max. output power 85 W, up to 89 % efficiency, power consumption in stand-by < 0.5 W, Nominal lifetime up to 100,000 h, 5-year warranty, "Low profile" metal housing with white top, IP20 degree of protection, one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2), proportionSWITCH, Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (DALI, I-SELECT 2), Constant Light Output Function (CLO), proportionSWITCH with predefined scenes (various channel dimming scenes can be selected), switchDIM and proportionSWITCH with memory function, Power-up Fading and fade2zero, Configuration via DALI, Protection functions (overtemperature, short circuit, overload, no-load, reduced surge current gain), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses, Flexible configuration via DALI and I-SELECT 2, For linear and area lighting Office & Healthcare Applications, Direct & Indirect Lighting Applications
Manufacturer

Tridonic Germany GmbH

Weight

0,277 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

600 – 1.800 mA

Suitable for DC voltage (primary side)

Yes

Output power

30,000 – 85,000 W

Protection class (IP)

IP20

Length

360 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28002829.pdf
