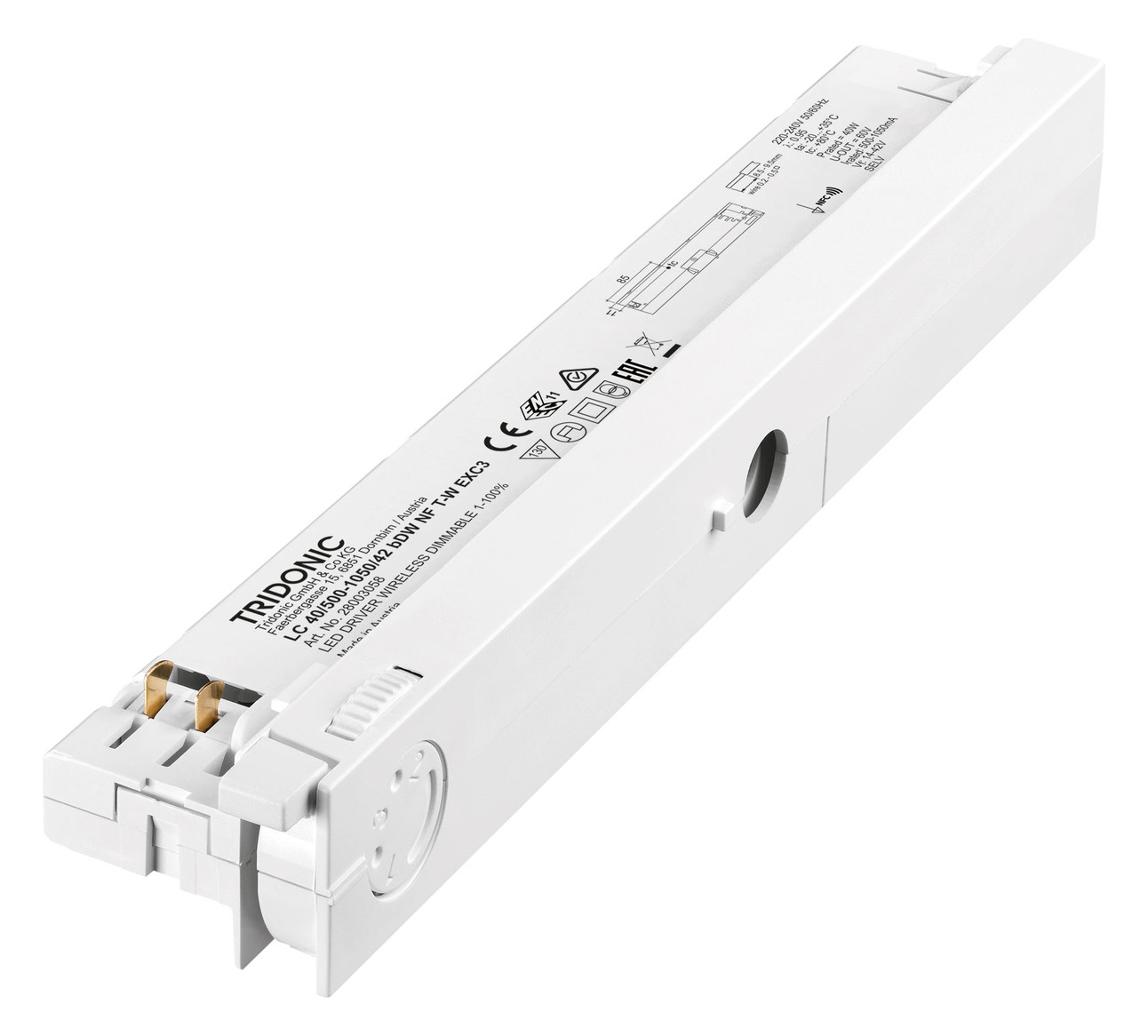

TRIDONIC LED Driver Constant Current LC 40/500-1050/42 bDW NF T-W EXC3 28003058

SKU: 73-28003058
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable constant current / track LED driver, Optional accessory ACU ALU NIPPLE M10x1 for fixing the luminaire head, Compatible track 3P system, see data sheet chapter 3.8, Automatically establishes a wireless communication network with up to 250 nodes, dimming range from 1 – 100 % (min. 5 mA), For luminaires of protection class II, Temperature protection according to EN 61347-2-13 C5e, Output current adjustable between 500 – 1,050 mA via near-field communication (NFC), Max. output power 40 W, Up to 85% efficiency, Stand-by < power consumption 0.5 W, Nominal service life up to 100,000 h, 5-year warranty, Housing: Polycarbonate black, white or grey, IP20 rating, basicDIM Wireless, Near-field communication (NFC), Adjustable output current in 1 mA increments (NFC), Overtemperature protection, Overload protection, Short circuit protection, Open circuit protection, Protection against burst voltages 2 kV, Protection against surge voltages 1 kV (between L and N), Flexible configuration via companionSUITE (NFC, DALI-2), Supports NFC multiple programming (whole carton unit), For spotlight in retail and hospitality applications
Manufacturer

Tridonic Germany GmbH

Weight

0,15 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

500 – 1.050 mA

Suitable for DC voltage (primary side)

No

Output power

21,000 – 40,000 W

Protection class (IP)

IP20

Protection class

II

Length

231 mm

Width

42,00 mm

Height

32,00 mm

Country of origin

Austria (AT)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
28003058.pdf
