TRIDONIC LED Treiber Konstantstrom LC 44/1050/42 fixC pc SR SNC2 28003347

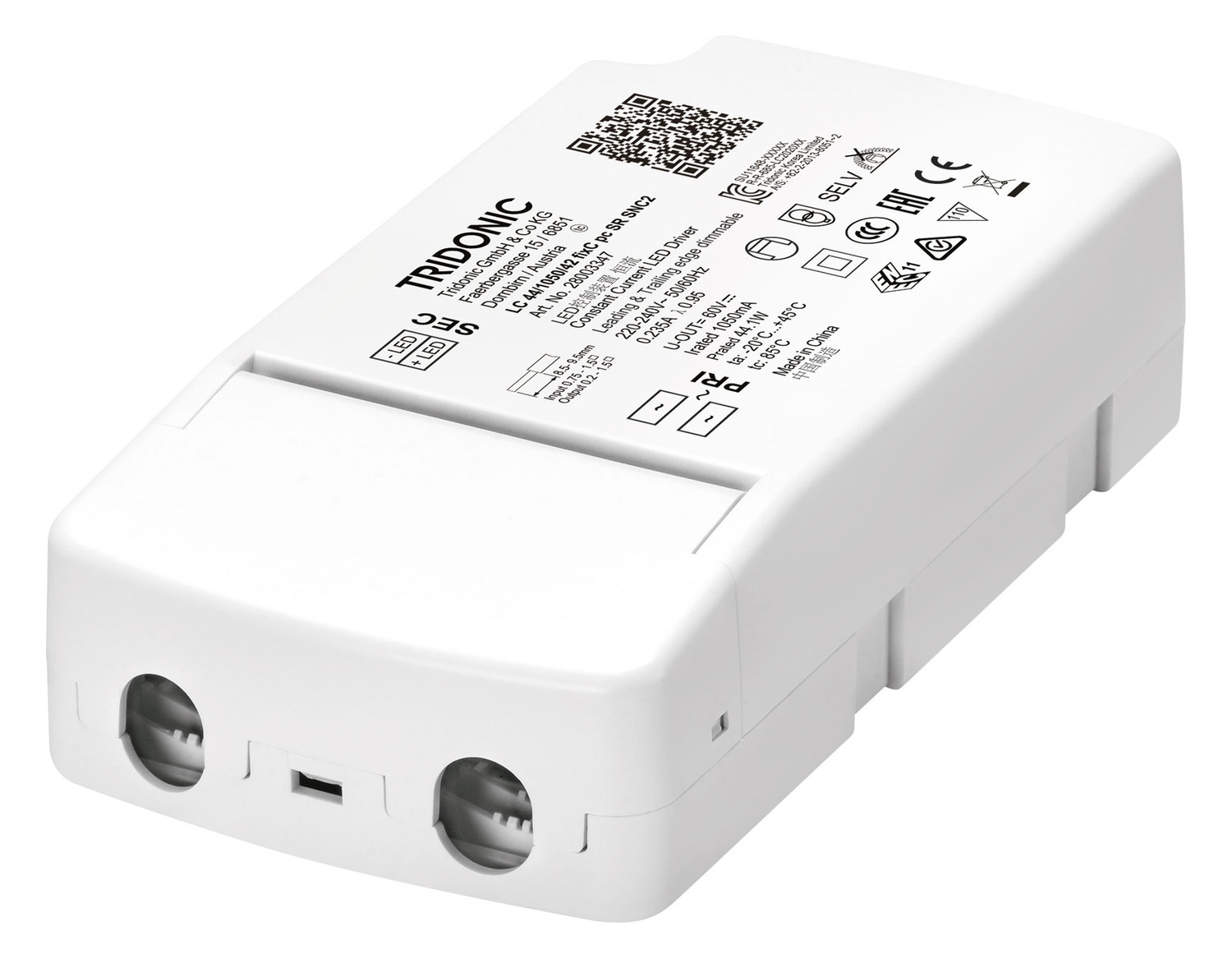

TRIDONIC LED Driver Constant Current LC 44/1050/42 fixC pc SR SNC2 28003347

SKU: 73-28003347

Datasheet: Download PDF

For further information, please refer to the data sheet!

Dimmable constant current LED driver (SELV) Independent LED driver with strain relief housing Extra flat design for limited installation conditions (small ceiling cutouts and low ceiling cavities)Dimmable by means of phase and trailing edge dimmer Dimming range 5 – 100 % (depending on the dimmer) For luminaires with F or M and MM according to EN 60598, VDE 0710 and VDE 0711 Max. output power 44, 1 W Output current 1,050 mA Nominal service life up to 50,000 h 5-year warranty

Manufacturer

Tridonic Germany GmbH

Weight

0,23 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

1.050 mA

Suitable for DC voltage (primary side)

Output power

28,400 – 44,100 W

Protection class (IP)

IP20

Protection class

Length

130 mm

Width

68,00 mm

Height

31,00 mm

Dimming 1-10 V

Yes

Dimming phase cut-off

Yes

Phase control dimming

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

28003347.pdf
