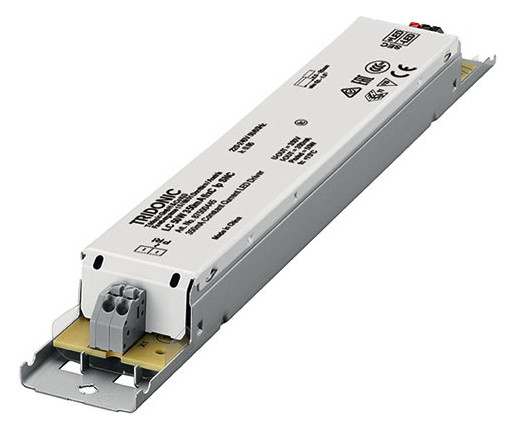

TRIDONIC LED Driver Constant Current LC 50W 700mA fixC lp SNC 87500447

SKU: 73-87500447
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed Output LED Driver for Luminaire Installation, Constant Current LED Driver, For Class I and Class II Luminaires, Temperature Protection in accordance with EN 61347-2-13 C5e, Output Current 250, 300, 350, 700 or 1,050 mA, Max Output Power 50 W, Nominal Life up to 50,000 h, 5 Years Warranty, Housing: Metal, White, IP20 Protection, Overload Protection, Short Circuit Protection, Open Circuit Protection, Protection against Burst Voltages 1 kV, Protection against Surge Voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground)
Manufacturer

Tridonic Germany GmbH

Weight

0,145 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

700 mA

Suitable for DC voltage (primary side)

No

Output power

30,000 – 50,000 W

Protection class (IP)

IP20

Length

230 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500447.pdf
