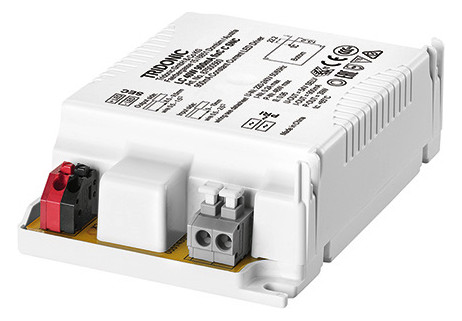

TRIDONIC LED Driver Constant Current LC 40W 900mA fixC C SNC 87500560

SKU: 73-87500560
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed Output LED Driver for Luminaire Installation, Constant Current LED Driver, Output Current 900 mA, Max. Output Power 40 W, Nominal Lifetime up to 50,000 h, For Class I and Class II Luminaires, Temperature Protection according to EN 61347-2-13 C5e, 5 Year Warranty, Housing: Polycarbonate, White, IP20 Rating, Overtemperature Protection, Overload Protection, Short Circuit Protection, Open Circuit Protection
Weight
0,126 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,126 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

900 mA

Suitable for DC voltage (primary side)

No

Output power

27 – 39 W

Protection class (IP)

IP20

Length

103 mm

Width

67 mm

Height

30 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500560.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
