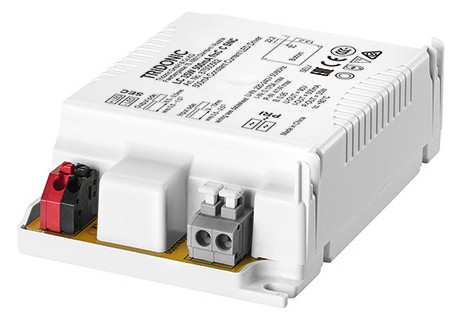

TRIDONIC LED Driver Constant Current LC 35W 50mA fixC C SNC 87500563

SKU: 73-87500563
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed output LED driver for luminaire installation, constant current LED driver, output current 350, 500, 800 or 1,050 mA, max. output power 35 W, nominal service life up to 50,000 h, For luminaires of protection class I and protection class II, temperature protection according to EN 61347-2-13 C5e, 5 years warranty, housing: polycarbonate, white, protection class IP20, overtemperature protection, overload protection, short-circuit protection, open-circuit protection
Manufacturer

Tridonic Germany GmbH

Weight

0,125 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

1.050 mA

Suitable for DC voltage (primary side)

No

Output power

24,000 – 35,000 W

Protection class (IP)

IP20

Length

103 mm

Width

67,00 mm

Height

30,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500563.pdf
