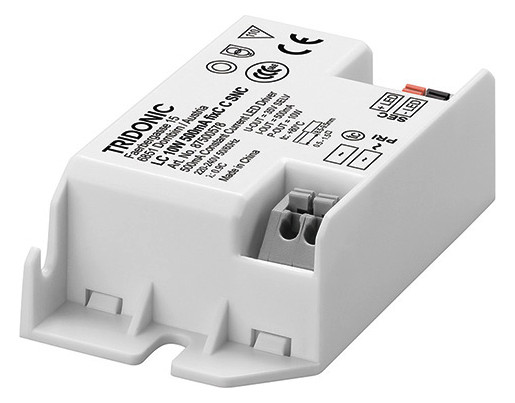

TRIDONIC LED Driver Constant Current LC 10W 0mA fixC C SNC 87500578

SKU: 73-87500578
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed Output LED Driver for Luminaire Installation, Constant Current LED Driver, For Class I and Class II Luminaires, Temperature Protection according to EN 61347-2-13 C5e, Output Current 350, 500 or 700 mA, Max Output Power 10 W, Nominal Life up to 50,000 h, 5 Year Warranty, Housing: Polycarbonate, White, IP20 Rating, Overload Protection, Short Circuit Protection, Open Circuit Protection
Manufacturer

Tridonic Germany GmbH

Weight

0,043 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

500 mA

Suitable for DC voltage (primary side)

No

Output power

7,000 – 10,000 W

Protection class (IP)

IP20

Length

80 mm

Width

40,00 mm

Height

21,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500578.pdf
