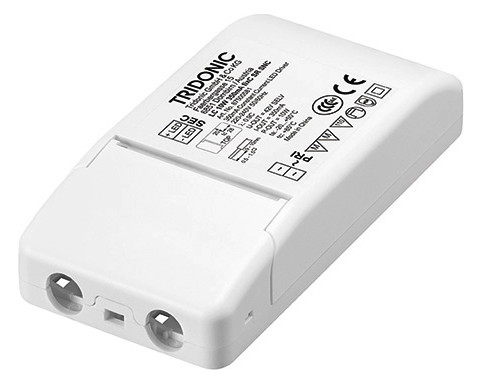

TRIDONIC LED Driver Constant Current LC 10W 0mA fixC SR SNC 87500583

SKU: 73-87500583
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent LED driver with cable clamps, Extra flat design for limited installation conditions (small ceiling cut-outs and low ceiling cavities), For luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711, Temperature protection according to EN 61347-2-13 C5e, Output current 250, 350, 500 or 700 mA, Max. output power 10 W, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 degree of protection, plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, overload protection, short-circuit protection, open-circuit protection, no overshoot of the output current when the mains is switched on or off
Weight
0,061 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,061 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

700 mA

Suitable for DC voltage (primary side)

No

Output power

7 – 10 W

Protection class (IP)

IP20

Protection class

II

Length

102 mm

Width

51 mm

Height

22 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500583.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
