TRIDONIC LED Treiber Konstantstrom 220-240VAC 300/450/500mA 12,6/18,9/21W dimmbar 87500603

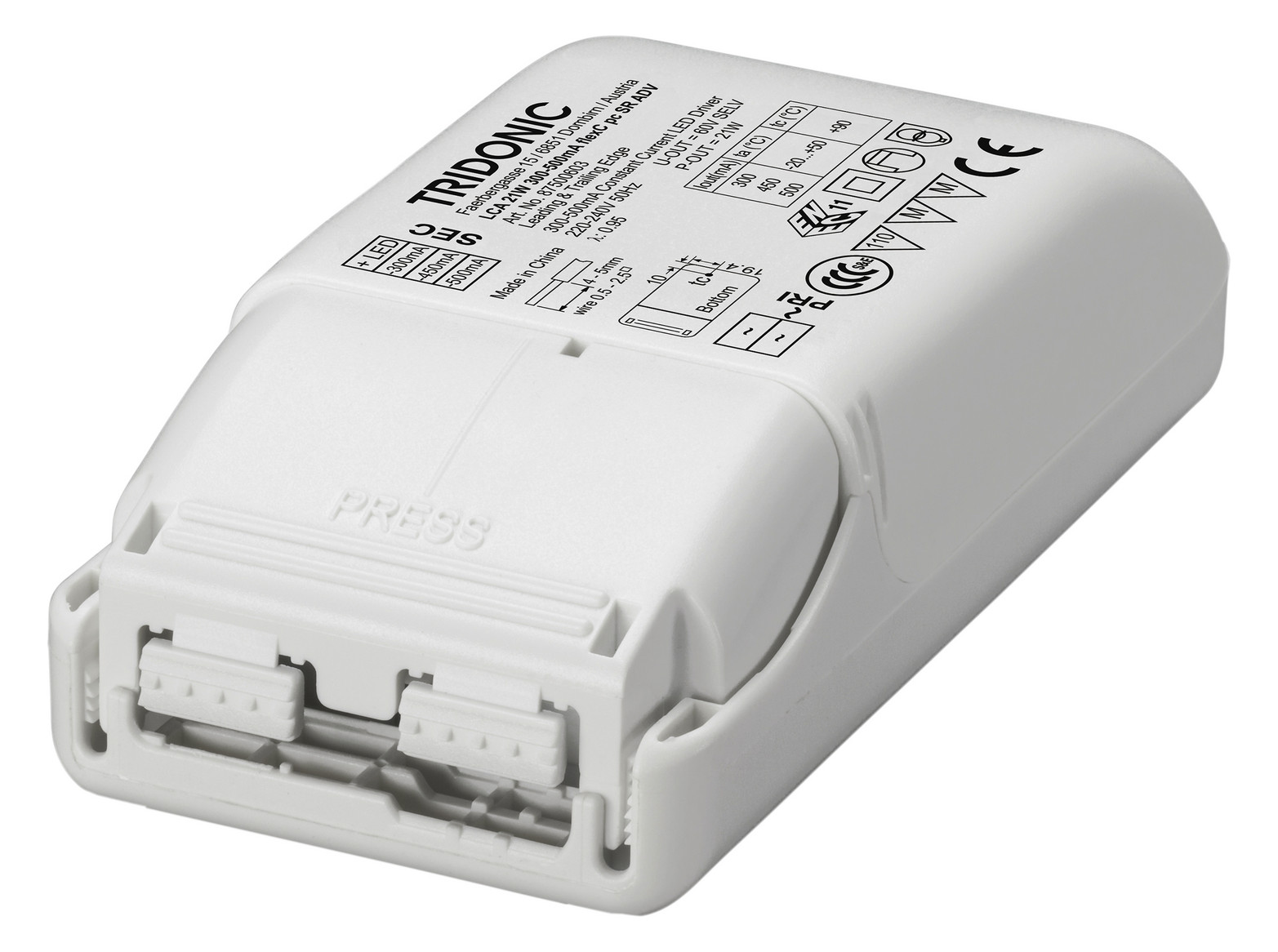

TRIDONIC LED Driver Constant Current 220-240VAC 300/450/500mA 12.6/18.9/21W Dimmable 87500603

SKU: 73-87500603

Datasheet: Download PDF

For further information, please refer to the data sheet!

Dimmable constant current LED driver (SELV), strain relief, output current 300, 450 or 500 mA, max. power 21 W, Up to 82 % efficiency, Dimmable by means of phase on/edge dimmer, Dimming range 5 – 100 % (depending on the dimmer), Nominal service life up to 50,000 h, For luminaires of protection class I + II, For luminaires with M + MM according to EN 60598, VDE 0710 and VDE 0711, Temperature protection according to EN 61347-2-13 C5e, 5 Year Warranty, Housing: Polycarbonate, White, IP20, 0° Screw Terminals, Protection against Overload, Short Circuit, Open Circuit, Overtemperature, Burst Voltages 1 kV, Surge Voltages 1 kV (between L and N), Surge Voltages 2 kV (between L/N and Earth)

Manufacturer

Tridonic Germany GmbH

Weight

0,093 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output voltage

28 – 42 V

Output current

300 – 500 mA

Suitable for DC voltage (primary side)

Output power

12,600 – 21,000 W

Protection class (IP)

IP20

Protection class

III

Length

102 mm

Width

51,00 mm

Height

30,00 mm

Dimming phase cut-off

Yes

Phase control dimming

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

87500603.pdf
