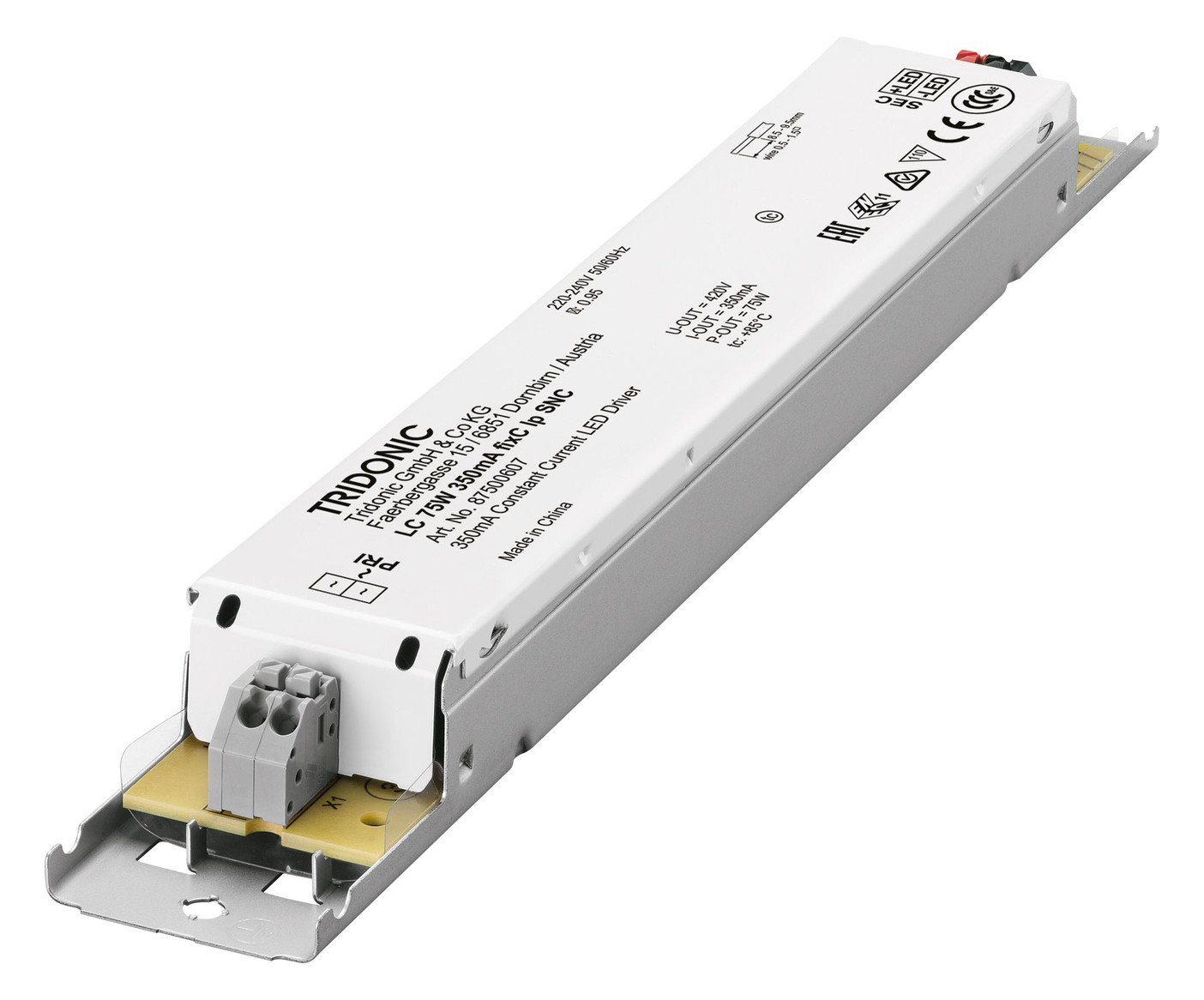

TRIDONIC LED Driver Constant Current LC 75W 350mA fixC lp SNC 87500607

SKU: 73-87500607
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed Output LED Driver for Luminaire Installation, Constant Current LED Driver, For Class I and Class II Luminaires, Temperature Protection According to EN 61347-2-13 C5e, Output Current 350 mA, Max. Output Power 75 W, Nominal Life up to 50,000 h, 5 Years Warranty, Housing: Metal, White, IP20 Protection, Overload Protection, Short Circuit Protection, Open Circuit Protection, Protection against Burst Voltages 1 kV, Protection against Surge Voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground)
Manufacturer

Tridonic Germany GmbH

Weight

0,181 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

350 mA

Suitable for DC voltage (primary side)

No

Output power

45,500 – 76,000 W

Protection class (IP)

IP20

Length

280 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500607.pdf
