TRIDONIC LED Driver Constant Voltage LC 100W 24V lp SNC 87500670

SKU: 73-87500670
Datasheet: Download PDF
For further information, please refer to the data sheet!

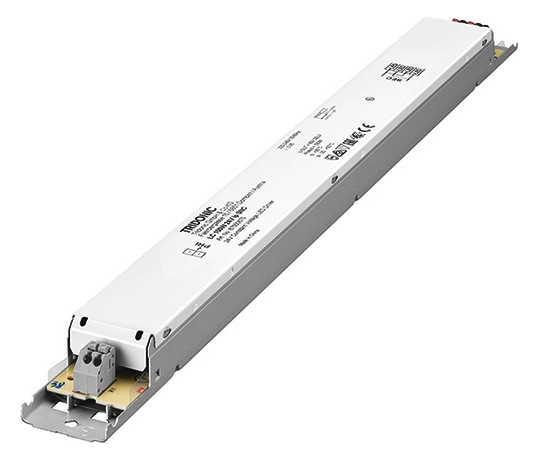

Constant voltage LED driver, Output voltage 24 V, Max. output power 100 W, Dimmable by PWM LED dimmer, Nominal service life up to 50,000 h, 5 years warranty, Cove lighting, Façade accent lighting, Indirect ceiling lighting, 24 V, 100 W, Very good THD performance at large load range < 5 %, Output voltage NF ripple (< 120 Hz) 1.5 %, Small cross-section, plug-in terminals for easy wiring, Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m, Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m, In combination with Flex-Accessories Wire to PCB connector
Manufacturer

Tridonic Germany GmbH

Weight

0,246 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Output current

1.250 – 4.167 mA

Suitable for DC voltage (primary side)

No

Output power

30,000 – 100,000 W

Protection class (IP)

IP20

Length

360 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500670.pdf
