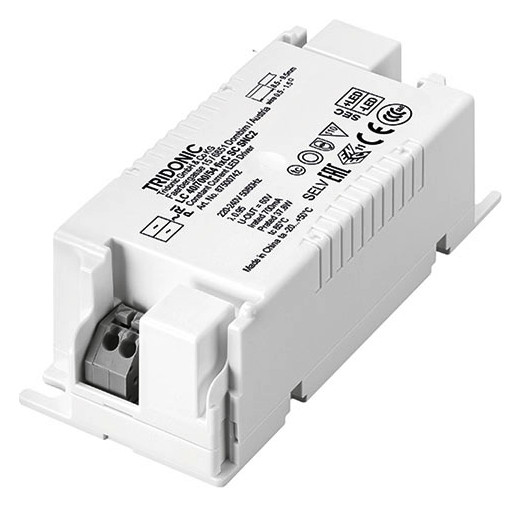

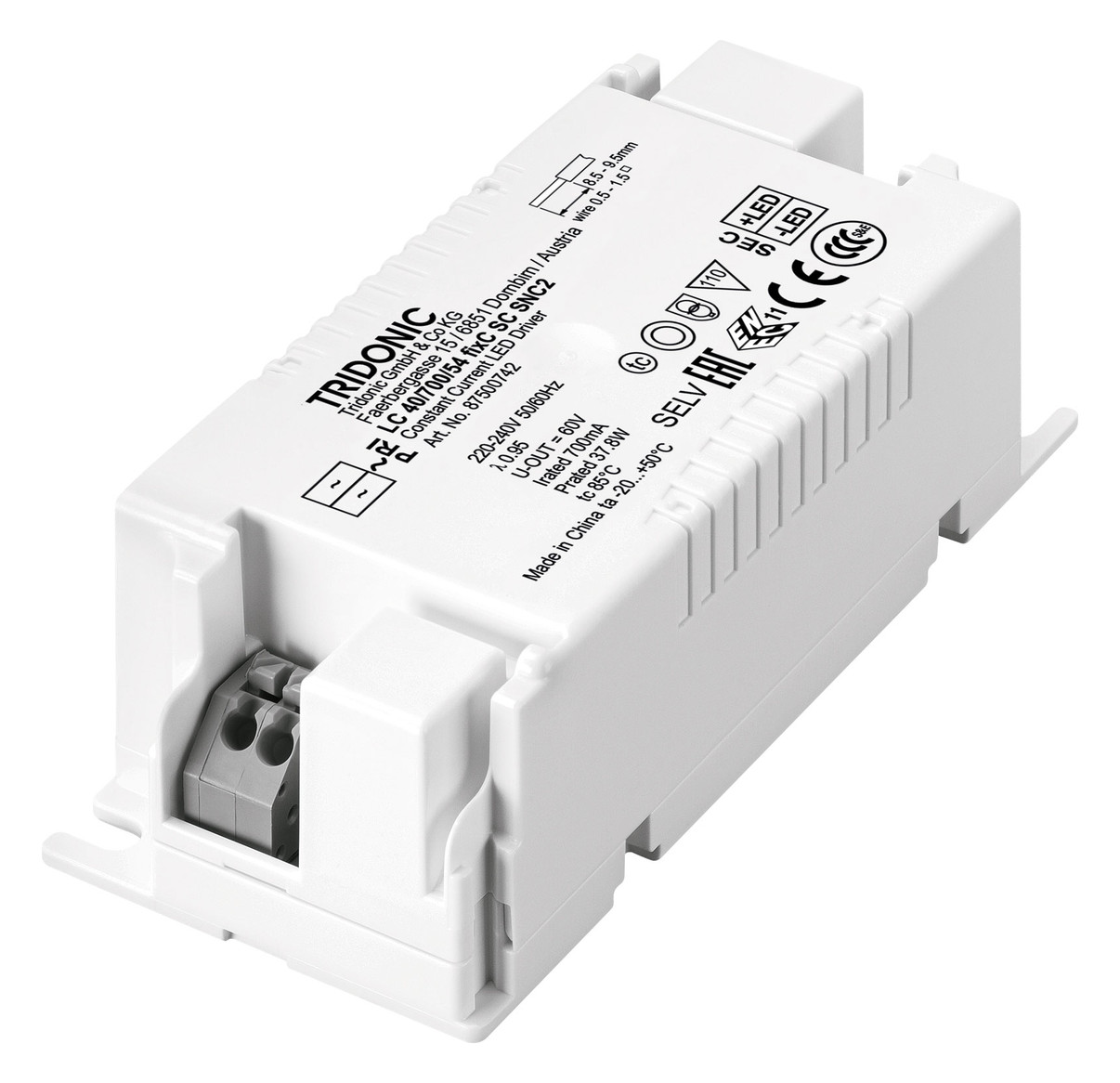

TRIDONIC LED Constant Current Driver LC 40/0/45 fixC SC SNC2 87500744

SKU: 73-87500744
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed-Output LED Driver, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see accessories), Independent LED driver with cable clamps, Constant current LED driver, For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 900 or 1,050 mA, Max. output power 40 W, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Overload protection, short-circuit protection, open-circuit protection, protection against burst voltages 1 kV, protection against surge voltages 1 kV (between L and N), protection against surge voltages 2 kV (between L/N and ground), For spotlights and downlights in retail and catering applications, For panel and area lighting in office and education applications
Manufacturer

Tridonic Germany GmbH

Weight

0,095 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

900 mA

Suitable for DC voltage (primary side)

No

Output power

24,300 – 40,500 W

Protection class (IP)

IP20

Length

97 mm

Width

43,00 mm

Height

30,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500744.pdf
