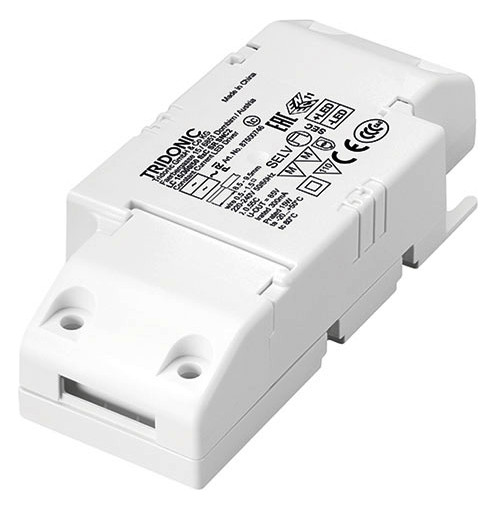

TRIDONIC LED Driver Constant Current LC 15/3/43 fixC SR SNC2 87500747

SKU: 73-87500747
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cut-outs and low ceiling cavities), For luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711, Temperature protection according to EN 61347-2-13 C5e, Output current 300 or 350 mA, Max. output power 15 W, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, overload protection, short-circuit protection, open-circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1 kV, Protection against surge voltages 0.5 kV (between L and N), Protection against surge voltages 1 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and educational applications
Manufacturer

Tridonic Germany GmbH

Weight

0,058 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

350 mA

Suitable for DC voltage (primary side)

No

Output power

8,800 – 15,100 W

Protection class (IP)

IP20

Protection class

II

Length

100 mm

Width

43,00 mm

Height

22,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500747.pdf
