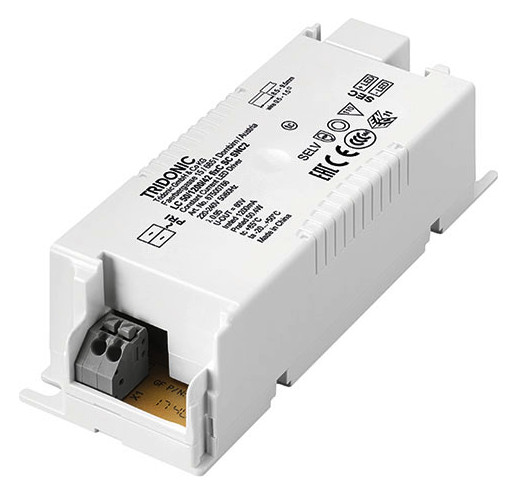

TRIDONIC LED Driver Constant Current LC 50/1200/42 fixC SC SNC2 87500766

SKU: 73-87500766
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed-Output LED Driver, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see accessories), Independent LED driver with cable clamps, Constant current LED driver, For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 1,200 mA, Nominal life up to 50,000 h, 5 year warranty, Housing: Polycarbonate, white, IP20 rating, Overload protection, Short circuit protection, Open circuit protection, Protection against burst voltages 1 kV, Protection against surge voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and education applications
Manufacturer

Tridonic Germany GmbH

Weight

0,108 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

1.200 mA

Suitable for DC voltage (primary side)

No

Output power

31,200 – 50,400 W

Protection class (IP)

IP20

Length

115 mm

Width

43,00 mm

Height

30,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes
