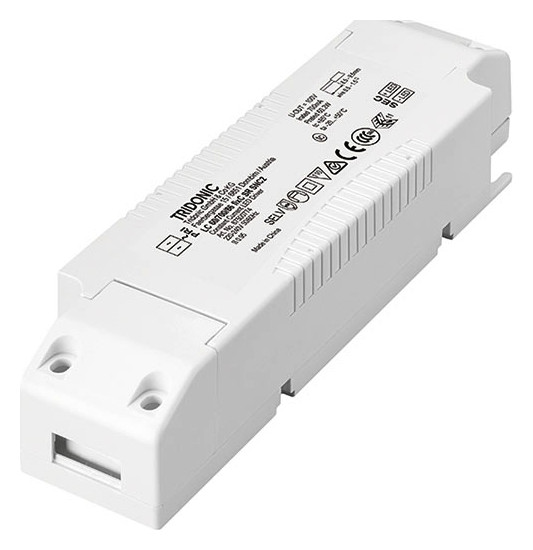

TRIDONIC LED Driver Constant Current LC 60/0/86 fixC SR SNC2 87500774

SKU: 73-87500774
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cutouts and low ceiling cavities), Temperature protection according to EN 61347-2-13 C5e, Output current 700 or 1,400 mA, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Plug terminals, 2 separate strain reliefs for input and output cables with very robust terminals, Overload protection, Short circuit protection, Open circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1 kV, Protection against surge voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and hospitality applications, For panel and area lighting in office and education applications
Manufacturer

Tridonic Germany GmbH

Weight

0,156 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

700 mA

Suitable for DC voltage (primary side)

No

Output power

32,900 – 60,200 W

Protection class (IP)

IP20

Protection class

II

Length

160 mm

Width

43,00 mm

Height

30,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500774.pdf
