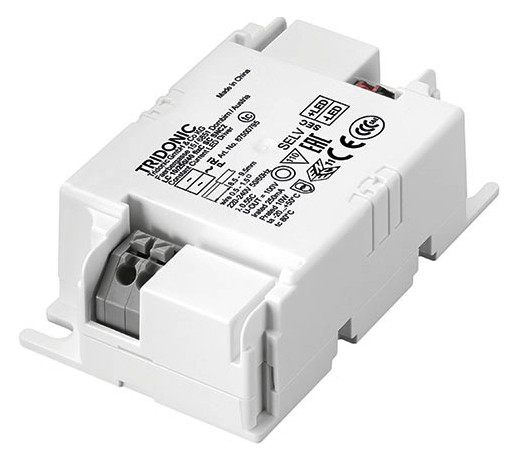

TRIDONIC LED Driver Constant Current LC 10/0/29 fixC SC SNC2 87500796

SKU: 73-87500796
Datasheet: Download PDF
For further information, please refer to the data sheet!
Fixed-Output LED Driver, Can be used as a luminaire recess or independent LED driver with snap-on strain relief (see accessories), Independent LED driver with cable clamps, Constant current LED driver, For Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 250, 350, 500 or 700 mA, Max. output power 10 W, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Overload protection, Short circuit protection, open-circuit protection, protection against burst voltages 1 kV, protection against surge voltages 0.5 kV (between L and N), protection against surge voltages 1 kV (between L/N and ground), For spotlights and downlights in retail and catering applications, For panel and area lighting in office and education applications
Manufacturer

Tridonic Germany GmbH

Weight

0,039 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

350 mA

Suitable for DC voltage (primary side)

No

Output power

6,000 – 10,200 W

Protection class (IP)

IP20

Length

70 mm

Width

43,00 mm

Height

22,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500796.pdf
