TRIDONIC LED Treiber Konstantstrom LC 20/200-650/54 0-10V NAX lp EXC2 UNV 87500847

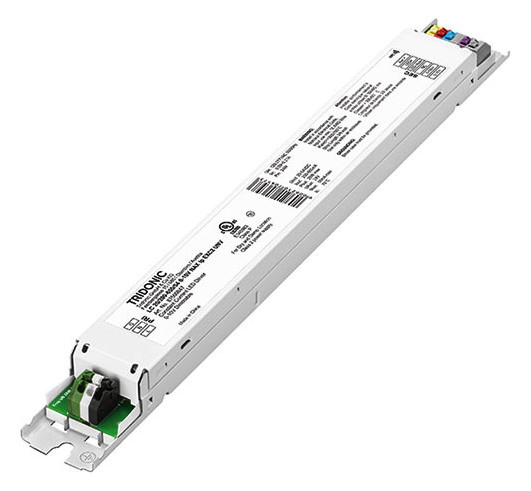

TRIDONIC LED Driver Constant Current LC 20/200-650/54 0-10V NAX lp EXC2 UNV 87500847

SKU: 73-87500847

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED driver, dimmable by means of 0 ... 10 V (incl. stand-by), Dimming range from 1 – 100%, Class 2, UL Listed Class P, FCC Part 15, Meets UL 8750 SF3.1, Output current adjustable between 200 – 650 mA via NFC, Max. output power 20 W, Up to 85% efficiency, Nominal service life up to 100,000 h, 5 year warranty, Housing: Metal, white, IP20 protection, Dry and humid environment, Adjustable output current in 1 mA increments (NFC), AUX output, programmable fade-out time, protection functions (over-temperature, short circuit, overload, open-circuit, input voltage range), operating window for max. compatibility, energy saving by dimming above 0.... 10 V interface, configuration via NFC, Adjust dimming with linear, logarithmic or square dimming curves, For linear and area lighting in office, education, healthcare and general lighting

Manufacturer

Tridonic Germany GmbH

Weight

0,205 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

200 – 650 mA

Suitable for DC voltage (primary side)

Protection class (IP)

IP20

Length

280 mm

Width

30,00 mm

Height

21,00 mm

Dimming 0-10 V

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes
