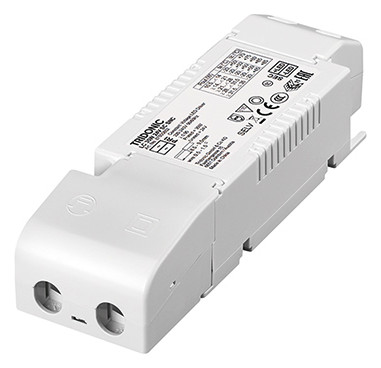

TRIDONIC LED Driver Constant Voltage LC 35W 24V SC SNC 87500853

SKU: 73-87500853
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant voltage LED driver, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see data sheet chapter: 1. Standards), Output voltage 24 V, Max. output power 35 W, Dimmable by PWM LED dimmer, Nominal service life up to 50,000 h, 5 years warranty, Cove lighting, Façade accent lighting, Indirect ceiling lighting, 24 V, 35 W, Small design (142 x 43 x 30 mm) with strain relief, Output voltage NF ripple (< 120 Hz) 1.5 %, Small cross-section, plug-in terminals for easy wiring, Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m, Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m, In combination with Flex-Accessories Wire to PCB connector
Manufacturer

Tridonic Germany GmbH

Weight

0,135 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

No

Protection class (IP)

IP20

Length

142 mm

Width

43,00 mm

Height

30,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500853.pdf
