TRIDONIC LED Treiber Konstantstrom LC 53/1130-1200/50 0-10V fixC lp SNC UNV 87500861

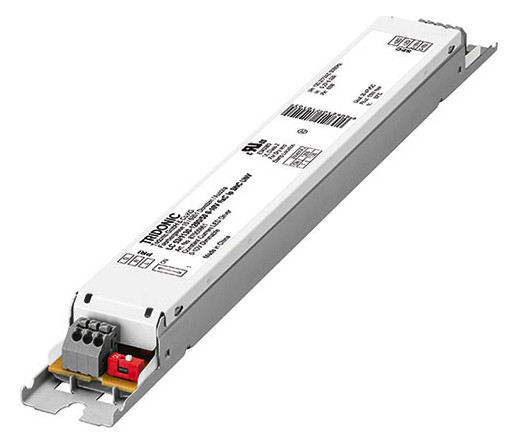

TRIDONIC LED Driver Constant Current LC 53/1130-1200/50 0-10V fixC lp SNC UNV 87500861

SKU: 73-87500861

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant Current LED Driver, US Applications Only, Dimmable by 0... 10 V, Dimming range from 10 – 100%, Class 2, FCC Part 15, Meets UL 8750 SF3.1, Meets DesignLights Consortium 4.3, Temperature protection according to UL8750/UL, Output current adjustable 1,130 or 1,200 mA, Max. output power 53 W, Nominal life up to 50,000 h, 5 year warranty, Housing: Metal, white, IP20 protection, Dry and humid environment, Overload protection, Short circuit protection, Open circuit protection, Overtemperature protection

Manufacturer

Tridonic Germany GmbH

Weight

0,201 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

1.130 – 1.200 mA

Suitable for DC voltage (primary side)

Protection class (IP)

IP20

Length

280 mm

Width

30,00 mm

Height

21,00 mm

Dimming 0-10 V

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt

87500861.pdf
