TRIDONIC LED Driver Constant Current LC 25/ 350-600/42 flexC T-G ADV 87500904

31. October 2024

TRIDONIC LED Driver Constant Current LC 40/500-1050/42 flexC NF T-G EXC 87500907

31. October 2024

TRIDONIC LED Treiber Konstantstrom LC 40/500-1050/42 flexC T-G ADV 87500905

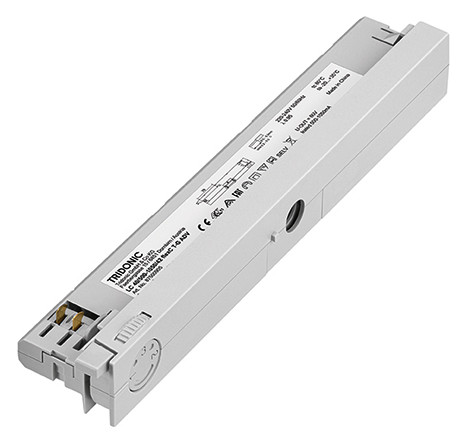

TRIDONIC LED Driver Constant Current LC 40/500-1050/42 flexC T-G ADV 87500905

SKU: 73-87500905

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current / track LED driver, Optional accessories ACU ALU NIPPLE M10x1 for fixing the luminaire head, Compatible track 3P system, see data sheet chapter 3.8, For luminaires of protection class II, Temperature protection according to EN 61347-2-13 C5e, Output current adjustable between 500 – 1,050 mA with I-SELECT 2 plugs, Max. output power 40 W, Up to 87 % efficiency, Nominal service life up to 100,000 h, 5 years warranty, Housing: Polycarbonate black, white or grey, IP20 degree of protection, over-temperature protection, overload protection, short-circuit protection, open-circuit protection, protection against burst voltages 1 kV, protection against surge voltages 1 kV (between L and N), For spotlight in commercial and catering applications

Manufacturer

Tridonic Germany GmbH

Weight

0,153 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

500 – 1.050 mA

Suitable for DC voltage (primary side)

Output power

21,000 – 40,000 W

Protection class (IP)

IP20

Protection class

Length

231 mm

Width

32,00 mm

Height

43,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

87500905.pdf
