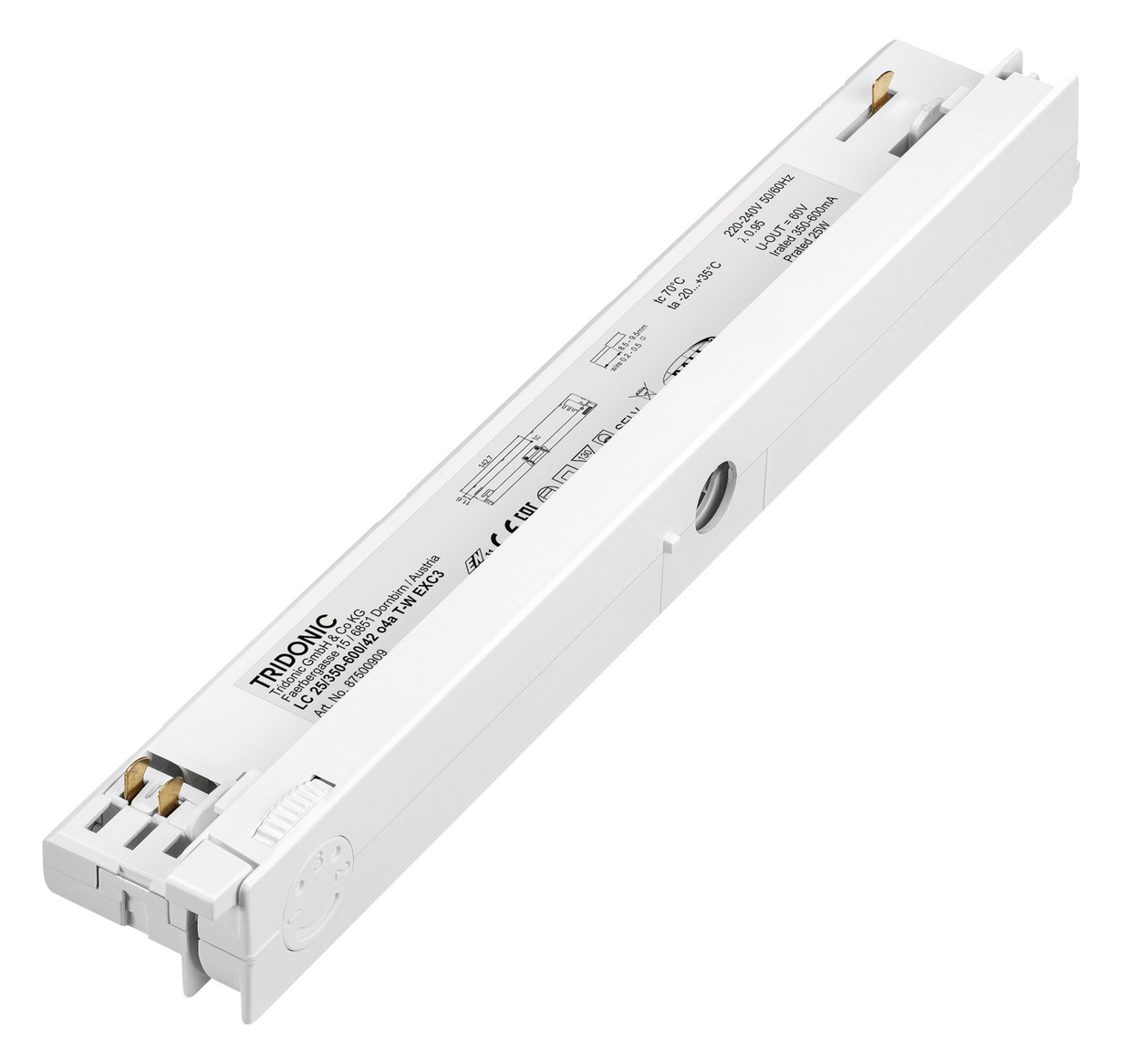

TRIDONIC LED Driver Constant Current LC 25/350-600/42 o4a T-W EXC3 87500909

SKU: 73-87500909
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable constant current / track LED driver, Optional accessories ACU ALU NIPPLE M10x1 for fixing the luminaire head, Compatible with Global Trac PULSE by Nordic Aluminium and OneTrack by Stucchi, see data sheet chapter 3.8, dimming range from 1 – 100 % (min. 3.5 mA), For luminaires of protection class II, temperature protection according to EN 61347-2-13 C5e, output current adjustable between 350 – 600 mA with I-SELECT 2 plugs or DALI, Max. output power 25 W, Up to 83% efficiency, Stand-by < power consumption 0.5 W, Nominal service life up to 100,000 h, 5-year warranty, Housing: Polycarbonate black, white or grey, IP20 protection, one4all (DALI-2, switchDIM, corridorFUNCTION), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (DALI-2, I-SELECT 2), Over-temperature protection, Overload protection, Short-circuit protection, Open-circuit protection, Protection against burst voltages 2 kV, Protection against surge voltages 1 kV (between L and N), Flexible configuration via companionSUITE (DALI-2), For spotlight in retail and hospitality applications
Manufacturer

Tridonic Germany GmbH

Weight

0,165 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

350 – 600 mA

Suitable for DC voltage (primary side)

No

Output power

14,700 – 25,000 W

Protection class (IP)

IP20

Protection class

II

Length

260 mm

Width

42,00 mm

Height

32,00 mm

DALI dimming

Yes

Dimming DSI

Yes

Dimming manufacturer-specific

Yes

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes
