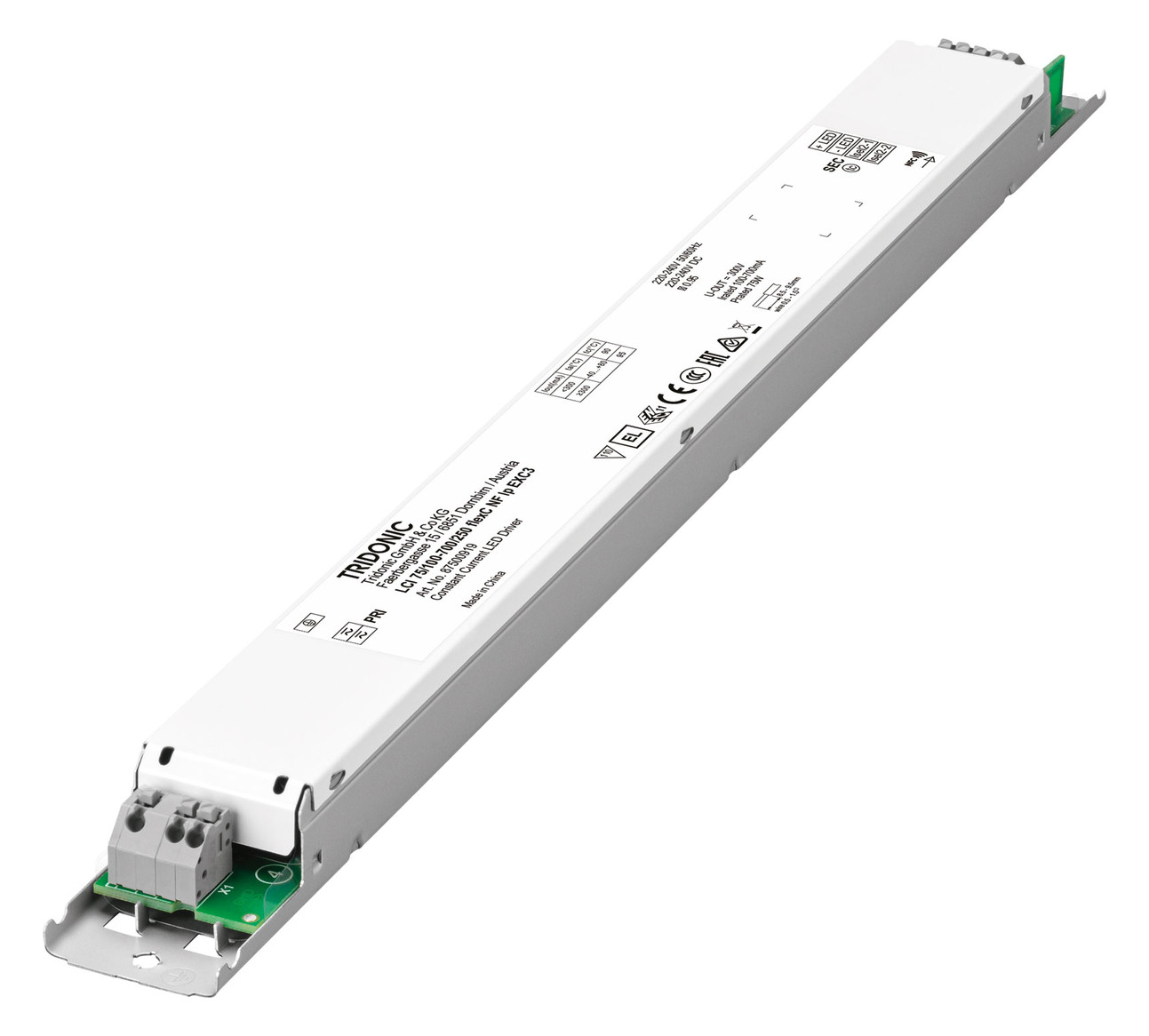

TRIDONIC LED Driver Constant Current LCI 75/100-700/250 flexC NF lp EXC3 87500919

SKU: 73-87500919
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, particularly suitable for industrial applications in harsh environments with elevated ambient temperatures, such as cold warehouses or factories, Output current adjustable between 100 – 700 mA, Max. output power 75 W, Voltage peak suitable (burst/surge) up to 4 kV, Extended temperature range from -40 ... +80 °C, Nominal service life up to 120,000 h (at ta 65 °C), 8 years warranty, White "slim" metal housing, IP20 rating, Near-field communication (NFC), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA increments (I-SELECT 2 resistor or NFC), Intelligent Temperature Guard (thermal protection device), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Suitable for emergency lighting systems according to EN 50172, Flexible Configuration via companionSUITE (NFC) or I-SELECT 2, Application-oriented operating window for maximum compatibility, Improved vibration properties, Increased safety due to robust design and extended test procedures under extreme test conditions, High reliability due to the selection of exclusive components, For linear and area lighting in industrial applications
Weight
0,302 kg
Manufacturer

Tridonic Germany GmbH

Weight

0,302 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

100 – 700 mA

Suitable for DC voltage (primary side)

Yes

Output power

25 – 75,6 W

Protection class (IP)

IP20

Length

360 mm

Width

30 mm

Height

21 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500919.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
