TRIDONIC LED Treiber Konstantstrom LCI 105/250-1050/300 flexC NF lp EXC3 87500920

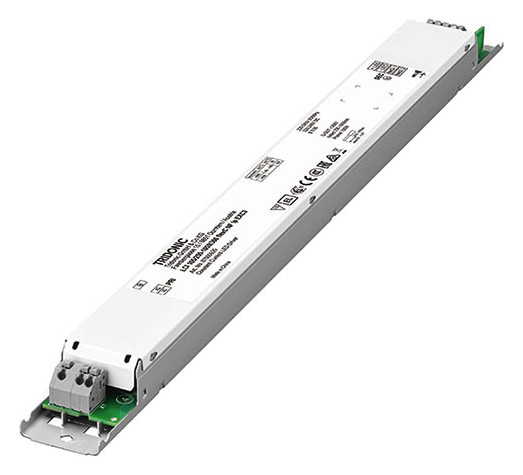

TRIDONIC LED Driver Constant Current LCI 105/250-1050/300 flexC NF lp EXC3 87500920

SKU: 73-87500920

Datasheet: Download PDF

For further information, please refer to the data sheet!

Constant current LED driver for luminaire installation, particularly suitable for industrial applications in harsh environments with elevated ambient temperatures, such as cold warehouses or factories, output current adjustable between 250 – 1,050 mA, max. output power 105 W, suitable for voltage peaks (burst/surge) up to 4 kV, extended temperature range from -40 ... +80 °C, nominal service life up to 120,000 h (at ta 60 °C), 8 years warranty, White "slim" metal housing, IP20 rating, Near-field communication (NFC), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA increments (I-SELECT 2 resistor or NFC), Intelligent Temperature Guard (thermal protection device), Intelligent Voltage Guard (overvoltage and undervoltage monitoring), Protection functions (overtemperature, short circuit, overload, no-load, input voltage range), Suitable for emergency lighting systems according to EN 50172, Flexible Configuration via companionSUITE (NFC) or I-SELECT 2, Application-oriented operating window for maximum compatibility, Improved vibration properties, Increased safety due to robust design and extended test procedures under extreme test conditions, High reliability due to the selection of exclusive components, For linear and area lighting in industrial applications

Manufacturer

Tridonic Germany GmbH

Weight

0,304 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

Compatible with Google Assistant

Compatible with Amazon Alexa

IFTTT support available

Execution

dynamic

Without dimming function

Yes

Housing

Metal housing

Suitable for constant current

Yes

Suitable for constant voltage

Output current

250 – 1.050 mA

Suitable for DC voltage (primary side)

Yes

Output power

75,000 – 105,000 W

Protection class (IP)

IP20

Length

360 mm

Width

30,00 mm

Height

21,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt

87500920.pdf
