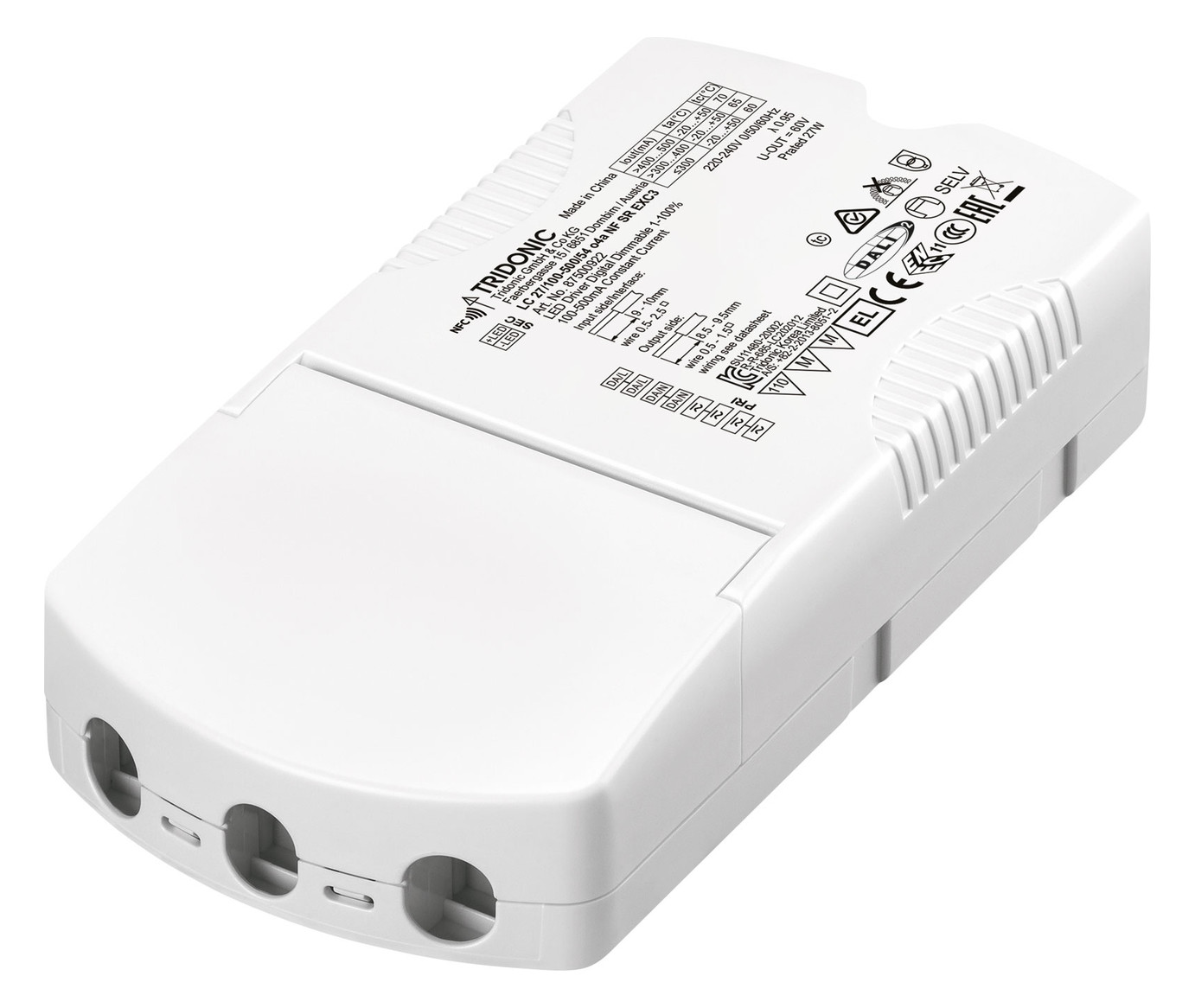

TRIDONIC LED Driver Constant Current LC 27/100-500/54 o4a NF SR EXC3 87500922

SKU: 73-87500922
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent constant current LED driver, Dimmable with DALI-2, Dimming range from 1 – 100% (min. 5 mA), Output current adjustable between 100 – 500 mA with DALI or NFC, Max. output power 27 W, Up to 86% efficiency, Stand-by < power consumption 0.5 W, Nominal lifetime up to 100,000 h, 5-year warranty, Housing: Polycarbonate, white, IP20 protection, Strain relief with the possibility of through-wiring, Near-field communication (NFC), one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2), Adjustable output current in 1 mA steps (NFC, DALI-2), Constant Light Output Function (CLO), Protection functions (overtemperature, short circuit, overload, no-load), Surge protection voltage 1 kV (L – N), Suitable for emergency lighting systems according to EN 50172, For wire diameters up to 2.5 mm², Flexible configuration via companionSUITE (NFC, DALI-2), Application-oriented operating window for max. Compatibility, For applications in downlight and decorative luminaires
Manufacturer

Tridonic Germany GmbH

Weight

0,192 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

100 – 500 mA

Suitable for DC voltage (primary side)

Yes

Output power

5,400 – 27,000 W

Protection class (IP)

IP20

Protection class

II

Length

160 mm

Width

82,00 mm

Height

34,00 mm

Country of origin

China (CN)

Commodity code

Transformers without liquid insulation with an output of 1kVA or less (85043180)

REACH Indicator

Yes

Datenblatt
87500922.pdf
