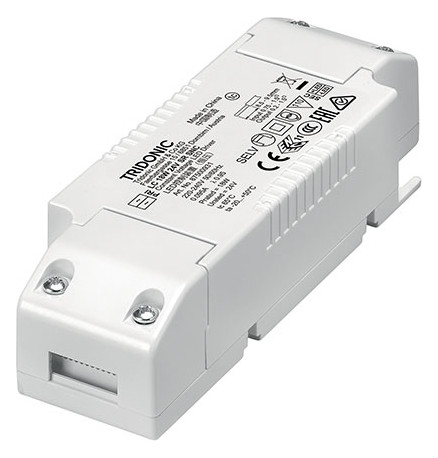

TRIDONIC LED Driver Constant Voltage LC 18W 24V SR SNC 500931

SKU: 73-87500931
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver, Output voltage 24 V, Max. output power 18 W, Dimmable by means of external PWM LED dimmer connected to the output side, Nominal service life up to 50,000 h, 5 years warranty.
Manufacturer

Tridonic Germany GmbH

Product group

LED control gear (EC002710)

Constant luminous flux control

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Without dimming function

Yes

Suitable for constant current

No

Suitable for constant voltage

Yes

Output power

5,4 – 18 W

Protection class (IP)

IP20

Protection class

II

Length

127 mm

Width

43 mm

Height

30 mm

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500931.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
