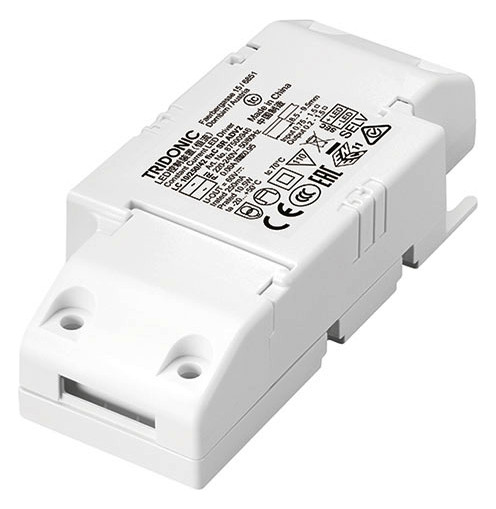

TRIDONIC LED Driver Constant Current LC 10/250/42 fixC SR ADV2 87500946

SKU: 73-87500946
Datasheet: Download PDF
For further information, please refer to the data sheet!
Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cutouts and low ceiling cavities), For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 250 mA, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, Overload protection, Short circuit protection, Open circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1 kV, Protection against burst voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and education applications
Manufacturer

Tridonic Germany GmbH

Weight

0,06 kg

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Execution

dynamic

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

250 mA

Suitable for DC voltage (primary side)

No

Output power

7,500 – 10,500 W

Protection class (IP)

IP20

Protection class

II

Length

100 mm

Width

43,00 mm

Height

22,00 mm

Country of origin

China (CN)

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500946.pdf
