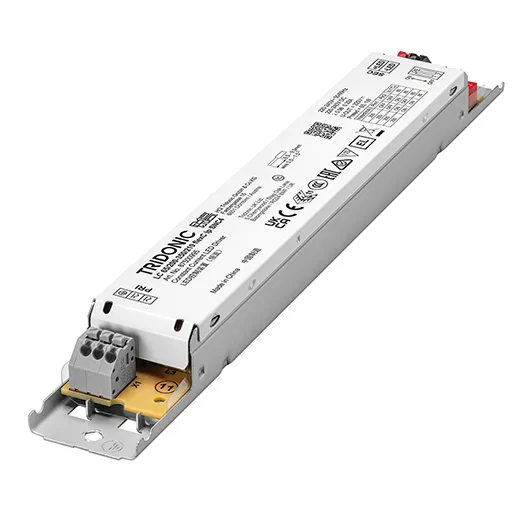

TRIDONIC LED Driver Constant Current LC 65/200-350/210 flexC lp SNC4 87500995

SKU: 73-87500995
Datasheet: Download PDF
For further information, please refer to the data sheet!
Constant current LED driver for luminaire installation, For luminaires of protection class I, Temperature protection according to EN 61347-2-13 C5e, Selectable fixed output current 350, 300, 250 and 200 mA, Max. output power 65.1 W, Up to 93.5% efficiency, Nominal service life up to 50,000 h, 5-year warranty, Housing: metal, white, IP20 protection, Overload protection, Short circuit protection, Open circuit protection
Manufacturer

Tridonic Germany GmbH

Product group

LED control gear (EC002710)

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Without dimming function

Yes

Output voltage

0 V

Output current

200 – 350 mA

Suitable for DC voltage (primary side)

Yes

Output power

42 – 65,1 W

Protection class (IP)

IP20

Length

230 mm

Width

30 mm

Height

21 mm

Commodity code

Rectifier (85044083)

REACH Indicator

Yes

Datenblatt
87500995.pdf
Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No
